PUSB3FA1 - ESD protection

nexperia

📥 Download Datasheet

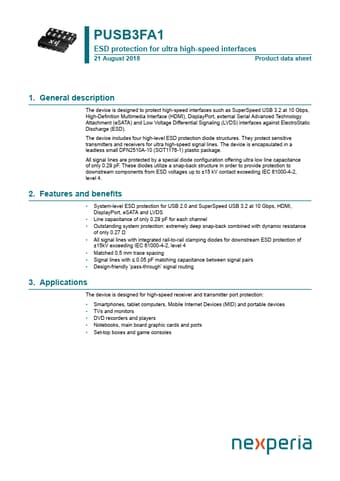

PUSB3FA1 Datasheet Preview — Preview of PUSB3FA1 PDF

Datasheet Details

Part number: PUSB3FA1
Manufacturer: nexperia ↗
File Size: 605.54 KB
Datasheet: PUSB3FA1-nexperia.pdf
Description: ESD protection

PUSB3FA1 Product details

Description

The device is designed to protect high-speed interfaces such as SuperSpeed USB 3.2 at 10 Gbps, High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD)..

Features

System-level ESD protection for USB 2.0 and SuperSpeed USB 3.2 at 10 Gbps, HDMI, DisplayPort, eSATA and LVDS.
Line capacitance of only 0.29 pF for each channel.
Outstanding system protection: extremely deep snap-back combined with dynamic resistance of only 0.27 Ω.
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±15kV exceeding IEC 61000-4-2, level 4.
Matched 0.5 mm trace spacing.
Signal lines w.
