PUSB3AB4 - ESD protection

NXP

📥 Download Datasheet

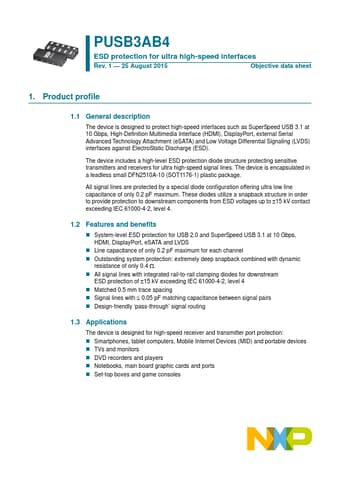

PUSB3AB4 Datasheet Preview — Preview of PUSB3AB4 PDF

Datasheet Details

Part number: PUSB3AB4
Manufacturer: NXP ↗
File Size: 145.53 KB
Datasheet: PUSB3AB4-NXP.pdf
Description: ESD protection

PUSB3AB4 Product details

Description

The device is designed to protect high-speed interfaces such as SuperSpeed USB 3.1 at 10 Gbps, High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD)..

Features

System-level ESD protection for USB 2.0 and SuperSpeed USB 3.1 at 10 Gbps, HDMI, DisplayPort, eSATA and LVDS.
Line capacitance of only 0.2 pF maximum for each channel.
Outstanding system protection: extremely deep snapback combined with dynamic resistance of only 0.4 .
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 15 kV exceeding IEC 61000-4-2, level 4.
Matched 0.5 mm trace spacing.
Signal lines with  0.05 pF mat.
