PUSB2X4D

ESD protection

NXP

PUSB2X4D Features

* System ESD protection for USB 2.0

* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 12 kV according to IEC 61000-4-2, level 4

* Line capacitance of 0.85 pF maximum for each channel 1.3 Applications The device is designed for receiver and

PUSB2X4D General Description

The device is designed to protect high-speed interfaces such as USB 2.0 ports against ElectroStatic Discharge (ESD). The device includes four high-level ESD protection diode structures for high-speed signal lines. It is encapsulated in a small SOT457 (SC-74) Surface-Mounted Device (SMD) plastic pack.

PUSB2X4D Datasheet (191.93 KB)

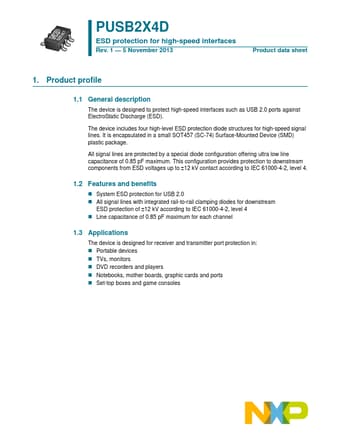

PUSB2X4D Datasheet Preview — Preview of PUSB2X4D PDF

Datasheet Details

Part number:

PUSB2X4D

Manufacturer:

NXP ↗

File Size:

191.93 KB

Description:

Esd protection.
SOT457 PUSB2X4D ESD protection for high-speed interfaces Rev. 1

* 5 November 2013 Product data sheet 1. Product profile 1.1 General descrip.
