PUSB220

DUAL USB 2.0 INTEGRATED ESD PROTECTION

PUSB220 Features

* Low clamping voltage

* Low leakage current (Max.=100nA)

* Four ultra-low input capacitance (typical 1pF)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free PUSB220L-AG6-R PUSB220G-AG6-R Package SOT-26 PUSB220L-AG6-R (1)Packing Type (2)Package Type (3)Lead Free

PUSB220 General Description

The UTC PUSB220 is a dual USB 2.0 integrated ESD protection diode array. it uses UTC’s advanced technology to provide customers with low leakage current, 4 ultra-low input capacitance rail-to-rail ESD protection diodes and low clamping voltage, etc. The UTC PUSB220 is suitable for DVI, Ethernet and .

PUSB220 Datasheet (197.00 KB)

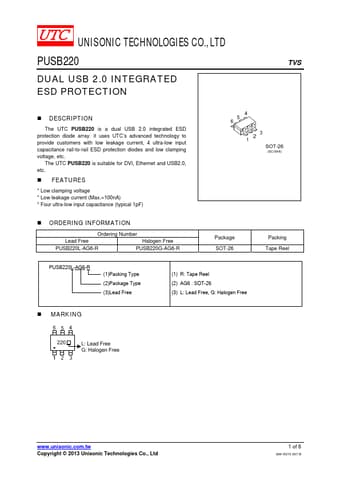

Preview of PUSB220 PDF

Datasheet Details

Part number:

PUSB220

Manufacturer:

Unisonic Technologies

File Size:

197.00 KB

Description:

Dual usb 2.0 integrated esd protection.
