PUSB2X4Y

ESD protection

NXP

PUSB2X4Y Features

* System ESD protection for USB 2.0

* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 12 kV according to IEC 61000-4-2, level 4

* Line capacitance of 0.85 pF maximum for each channel 1.3 Applications The device is designed for receiver and

PUSB2X4Y General Description

The device is designed to protect high-speed interfaces such as USB 2.0 ports against ElectroStatic Discharge (ESD). The device includes four high-level ESD protection diode structures for high-speed signal lines. It is encapsulated in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic.

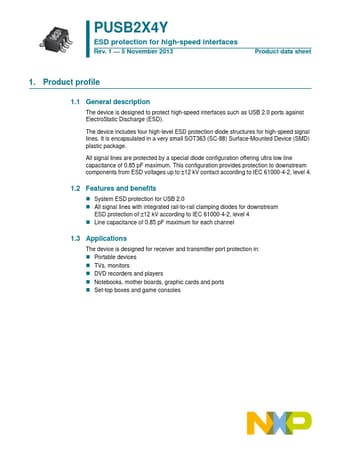

PUSB2X4Y Datasheet (175.80 KB)

PUSB2X4Y Datasheet Preview — Preview of PUSB2X4Y PDF

Datasheet Details

Part number:

PUSB2X4Y

Manufacturer:

NXP ↗

File Size:

175.80 KB

Description:

Esd protection.
