PUSB05UBK Datasheet, Array, Protek Devices

PUSB05UBK Features

  • Array
  • Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns
  • Compatible with IEC 61000-4-5 (Surge):

PDF File Details

Part number:

PUSB05UBK

Manufacturer:

Protek Devices

File Size:

423.83kb

Download:

📄 Datasheet

Description:

Ultra low capacitance steering diode/tvs array. The PUSB05UBK is a high-powered, ultra low capacitance device for dual USB port and power bus protection. The PUSB05UBK is rated for

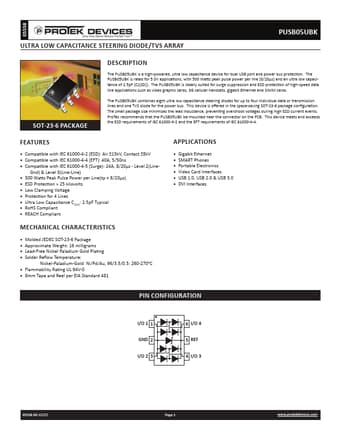

Datasheet Preview: PUSB05UBK 📥 Download PDF (423.83kb)
Page 2 of PUSB05UBK Page 3 of PUSB05UBK

PUSB05UBK Application

  • Applications with 500 Watts peak pulse power per line (8/20µs) and an ultra low capacitance of 2.5pF (CJ(SD)). The PUSB05UBK is ideally suited for

TAGS

PUSB05UBK
ULTRA
LOW
CAPACITANCE
STEERING
DIODE
TVS
ARRAY
Protek Devices
