PUSB3AB6

ESD protection

NXP

PUSB3AB6 Features

* System-level ESD protection for USB 2.0 and USB 3.1 combination, SD card 3.0 and Thunderbolt interfaces

* Supports SuperSpeed USB 3.1 at 10 Gbps

* Line capacitance of only 0.15 pF for each channel

* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD pr

PUSB3AB6 General Description

The device is designed to protect high-speed interfaces such as SuperSpeed and Hi-Speed USB combination, Secure Digital (SD) card 3.0 and Thunderbolt interfaces against ElectroStatic Discharge (ESD). The device includes six high-level ESD protection diode structures. They protect sensitive transmitt.

PUSB3AB6 Datasheet (1.01 MB)

PUSB3AB6 Datasheet Preview — Preview of PUSB3AB6 PDF

Datasheet Details

Part number:

PUSB3AB6

Manufacturer:

NXP ↗

File Size:

1.01 MB

Description:

Esd protection.

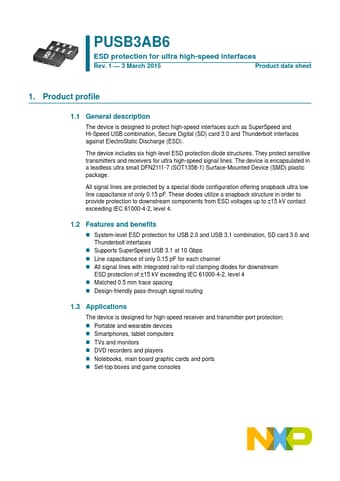

XSON7 PUSB3AB6 ESD protection for ultra high-speed interfaces Rev. 1

* 3 March 2015 Product data sheet 1. Product profile 1.1 General des.
