MJ15025, MJ15023 - PNP Silicon Power Transistor

onsemi

MJ15025 Description

Silicon Power Transistors MJ15023 (PNP), MJ15025 (PNP) The MJ15023 and MJ15025 are power transistors designed for high power audio, disk head position.

MJ15025 Features

* High Safe Operating Area
* High DC Current Gain
* Complementary to MJ15022 (NPN), MJ15024 (NPN)
* These Devices are Pb
* Free and are RoHS Compliant
* MAXIMUM RATINGS Rating Collector
* Emitter Voltage MJ15023 MJ15025 Symbol VCEO Value 200 250 Unit Vdc Collecto

📥 Download Datasheet

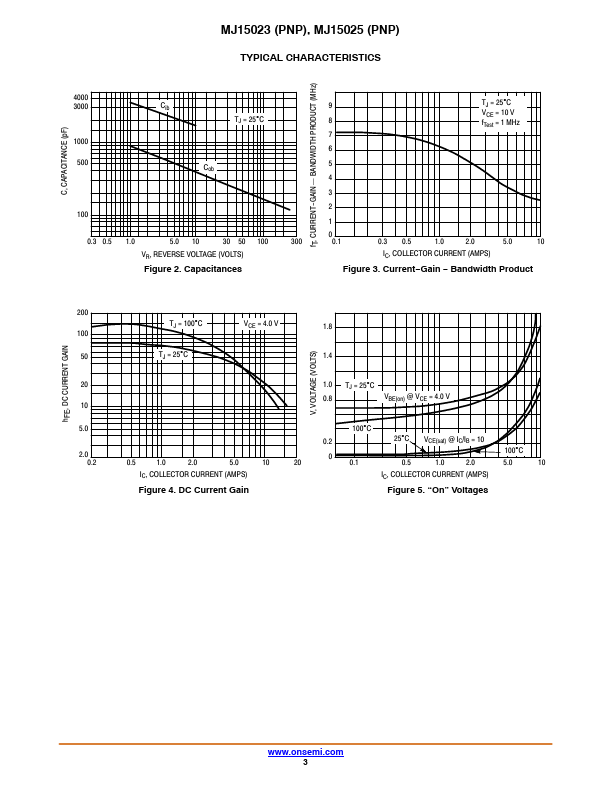

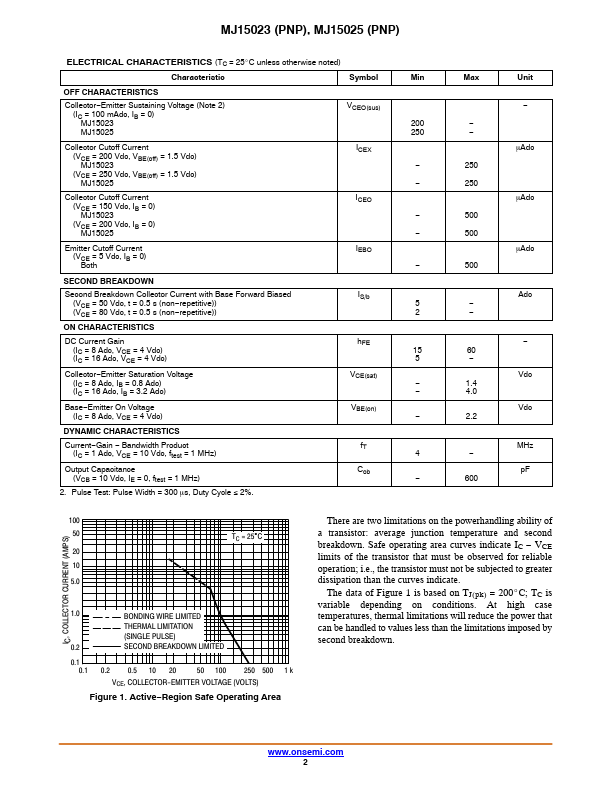

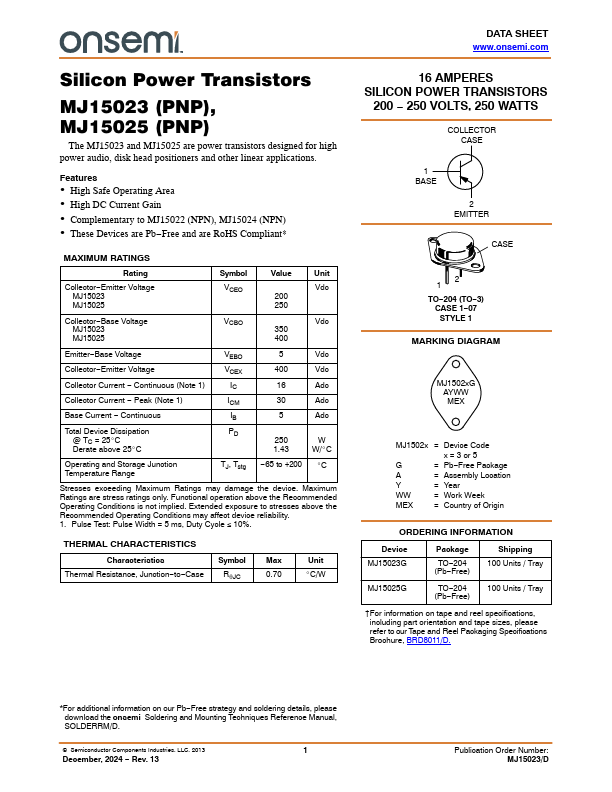

MJ15025 Datasheet Preview — This datasheet PDF includes multiple part numbers: MJ15025, MJ15023. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: MJ15025, MJ15023
Manufacturer: onsemi
File Size: 190.43 KB
Datasheet: MJ15023-onsemi.pdf
Description: PNP Silicon Power Transistor
Note: This datasheet PDF includes multiple part numbers: MJ15025, MJ15023.
Please refer to the document for exact specifications by model.
