TQP9107 Datasheet, Amplifier, qorvo

TQP9107 Features

  • Amplifier
  • 600 
      – 960 MHz Frequency Range
  • 35.5 dB gain
  • +46 dBm Output IP3 at Pout = +24 dBm/tone
  • 31% PAE at +27 dBm Pout
  • Internally

PDF File Details

Part number:

TQP9107

Manufacturer:

qorvo

File Size:

849.19kb

Download:

📄 Datasheet

Description:

600mhz - 960mhz 2-stage power amplifier. The TQP9107 is a high-efficiency two-stage power amplifier in a low-cost surface-mount package. The amplifier is able to achieve 31%

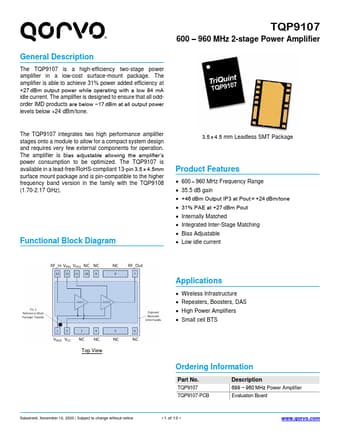

Datasheet Preview: TQP9107 📥 Download PDF (849.19kb)
Page 2 of TQP9107 Page 3 of TQP9107

TQP9107 Application

  • Applications
  • Wireless Infrastructure
  • Repeaters, Boosters, DAS
  • High Power Amplifiers
  • Small cell BTS Ordering
