TQP9221

High Linearity 0.25 W Small Cell PA

TQP9221 Features

* 2010 

*  2200 MHz

* Bands 1, 4, 10, 23, 34, 66

* Fully integrated, 2 Stage Power Amplifier

* Internally Matched 50 Ω Input/Output

* 49 dBc ACLR at Pavg =+24 dBm

* 30.5 dB Gain

* 15% PAE at +24 dBm

* 220 mA Quiescent Current

* On-chip Control Bias

TQP9221 General Description

The TQP9221 is a high-linearity two-stage power amplifier in a low-cost surface-mount package with onchip bias control and temperature compensation ci.

TQP9221 Datasheet (433.31 KB)

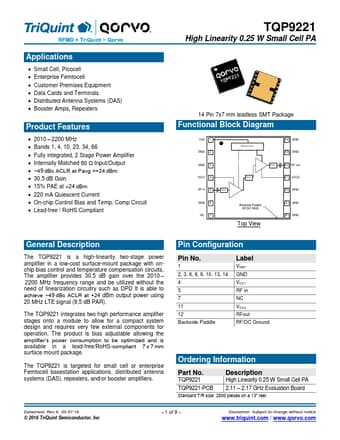

Preview of TQP9221 PDF

Datasheet Details

Part number:

TQP9221

Manufacturer:

TriQuint Semiconductor

File Size:

433.31 KB

Description:

High linearity 0.25 w small cell pa.
Applications
* Small Cell, Picocell
* Enterprise Femtocell
* Customer Premises Equipment
* Data Cards and Terminals
* Distributed .
