TQP9058H Datasheet - TriQuint Semiconductor

Multi-Mode / Multi-Band Power Amplifier Module

TQP9058H Features

* Quad-Band Linear GSM / EDGE

* UMTS B1, 2/25, 3/4 and B5/26, 8

* VRAMP Controlled Output Power

* GMSK

* VRAMP Optimized Bias in 8-PSK for Linearity and Current Consumption

* Two W/CDMA Modes

* HPM & LPM

* HBT / CuFlip® PA Technology

* Integrated Coupler A

TQP9058H General Description

The TQP9058H is a fully matched multimode multiband Power Amplifier Module that supports Quad-band GSM/EDGE, W/CDMA & LTE Bands 1, 2/25, 3/4, 5/26 & 8. The GSM PA output power is controlled by the VRAMP coming from the transceiver in GMSK modes. In 8-PSK modes, VRAMP is used to optimize current cons.

TQP9058H Datasheet (149.11 KB)

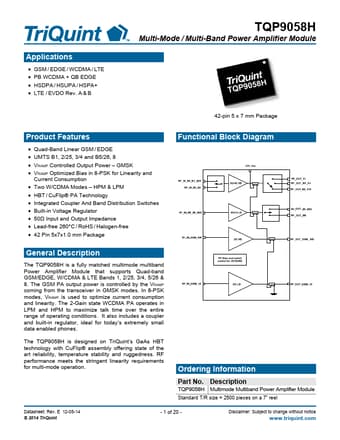

Preview of TQP9058H PDF

Datasheet Details

Part number:

TQP9058H

Manufacturer:

TriQuint Semiconductor

File Size:

149.11 KB

Description:

Multi-mode / multi-band power amplifier module.
Applications GSM / EDGE / WCDMA / LTE PB WCDMA + QB EDGE HSDPA / HSUPA / HSPA+ LTE / EVDO Rev. A & B TQP9058H Multi-Mode / Mu.
