TQP9108

2-stage Power Amplifier

TQP9108 Features

* 1.71-2.17 GHz Frequency Range

* 30.5 dB gain

* +46 dBm Output IP3 @ 24 dBm/tone

* 39% PAE @ 27 dBm Pout

* Internally Matched

* Integrated interstage matching

* Bias Adjustable

* Low idle current General Description The TQP9108 is a high-efficiency two-stage power am

TQP9108 General Description

The TQP9108 is a high-efficiency two-stage power amplifier in a low-cost surface-mount package. The amplifier is able to achieve 39% power added efficiency at 27 dBm output power while operating with a low 65 mA idle current. The amplifier is designed to ensure that all odd-order IMD products are be.

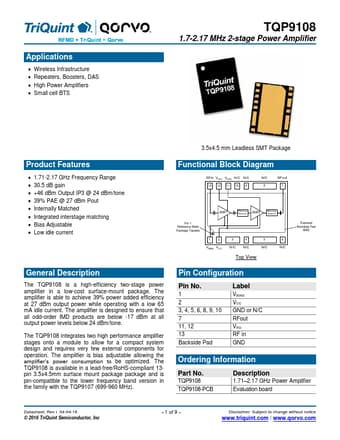

TQP9108 Datasheet (353.86 KB)

Preview of TQP9108 PDF

Datasheet Details

Part number:

TQP9108

Manufacturer:

TriQuint Semiconductor

File Size:

353.86 KB

Description:

2-stage power amplifier.
Applications
* Wireless Infrastructure
* Repeaters, Boosters, DAS
* High Power Amplifiers
* Small cell BTS TQP9108 1.7-2.17 MHz 2-sta.
