TQP9051 Datasheet - TriQuint Semiconductor

TQP9051 MIPI ET/APT MMPA

RFIN_B3_B4 RFIN_B26 2 3 The TQP9051 is a fully matched multimode multiband Power Amplifier Module that supports Quad-band Linear GSM/EDGE, W/CDMA & LTE Bands 1, 2, 3, 4, 5, 8 and 26. The GSM PA output power is controlled by the input power coming from the transceiver in both GMSK and 8PSK modes. .

TQP9051 Features

* Envelope tracking compatible

* UMTS Band 1,2,3,4,5,8, & 26

* Integrated band distribution switches

* Quad-Band Linear GSM/EDGE

* MIPI RFEE Interface

* W/CDMA/LTE has 2 modes

* HPM & LPM

* GSM has 2 modes

* HPM & LPM

TQP9051-TriQuintSemiconductor.pdf

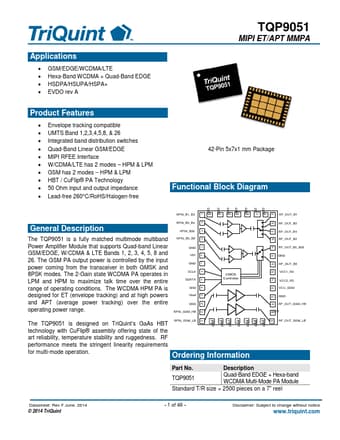

Preview of TQP9051 PDF

Datasheet Details

Part number:

TQP9051

Manufacturer:

TriQuint Semiconductor

File Size:

71.77 KB

Description:

Mipi et/apt mmpa.
