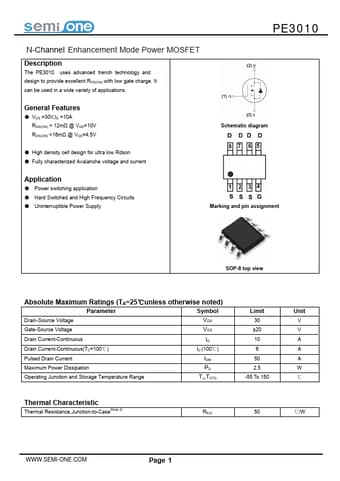

PE3010 Datasheet, Mosfet, semi one

PE3010 Features

• Mosfet
• VDS =30V,ID =10A RDS(ON) < 12mΩ @ VGS=10V RDS(ON) <16mΩ @ VGS=4.5V Schematic diagram
• High density cell design for ultra low Rdson
• Fully characterized Ava

PDF File Details

Part number:

PE3010

Manufacturer:

semi one

File Size:

767.38kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The PE3010 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide var

PE3010 Application

• Applications General Features
• VDS =30V,ID =10A RDS(ON) < 12mΩ @ VGS=10V RDS(ON) <16mΩ @ VGS=4.5V Schematic diagram
• High dens
