PE30P11DS - P-Channel Enhancement Mode Power MOSFET

Product Overview

ChipSourceTek

📥 Download Datasheet

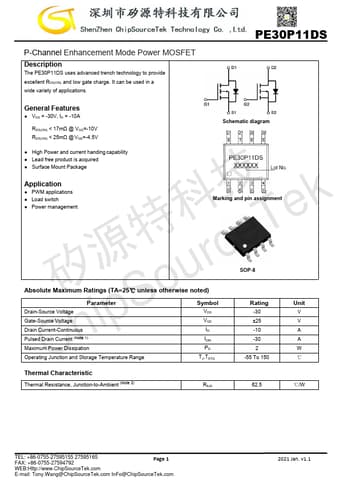

PE30P11DS P-Channel Enhancement Mode Power MOSFET by ChipSourceTek - Datasheet Preview — Datasheet preview – PE30P11DS

Datasheet Details

Part number	PE30P11DS
Manufacturer	ChipSourceTek
File Size	1.00 MB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE30P11DS Datasheet
Additional preview pages of the PE30P11DS datasheet.

Product details

Description

The PE30P11DS uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = -30V, ID = -10A RDS(ON) < 17mΩ @ VGS=-10V RDS(ON) < 25mΩ @ VGS=-4.5V Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
