PE30P65K - P-Channel Enhancement Mode Power MOSFET

Product Overview

ChipSourceTek

📥 Download Datasheet

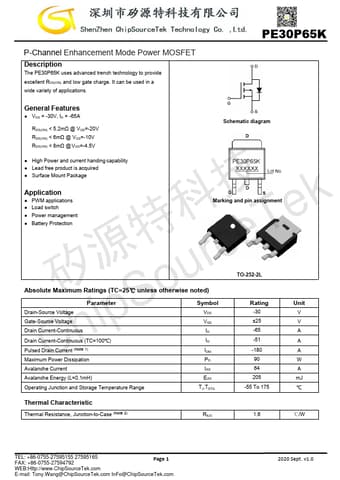

PE30P65K P-Channel Enhancement Mode Power MOSFET by ChipSourceTek - Datasheet Preview — Datasheet preview – PE30P65K

Datasheet Details

Part number	PE30P65K
Manufacturer	ChipSourceTek
File Size	1.01 MB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE30P65K Datasheet
Additional preview pages of the PE30P65K datasheet.

Product details

Description

The PE30P65K uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = -30V, ID = -65A RDS(ON) < 5.2mΩ @ VGS=-20V RDS(ON) < 6mΩ @ VGS=-10V RDS(ON) < 8mΩ @ VGS=-4.5V Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
