PE30P13DS, PE30P13DS-ChipSourceTek P-Channel Enhancement Mode Power MOSFET

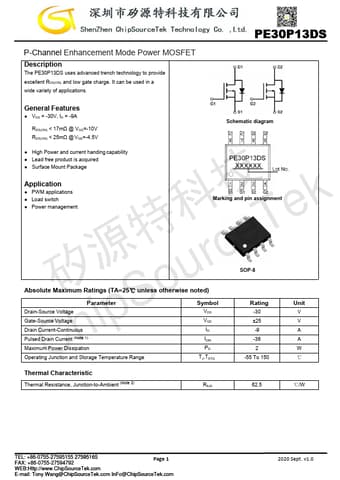

📥 Download Datasheet  Datasheet Preview Page 1

Description

P-Channel Enhancement Mode Power MOSFET .
The PE30P13DS uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PE30P13DS, PE30P13DS-ChipSourceTek. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE30P13DS, PE30P13DS-ChipSourceTek
Manufacturer
ChipSourceTek
File Size
0.98 MB
Datasheet
PE30P13DS-ChipSourceTek_removed.pdf
Description
P-Channel Enhancement Mode Power MOSFET
Note
This datasheet PDF includes multiple part numbers: PE30P13DS, PE30P13DS-ChipSourceTek.
Please refer to the document for exact specifications by model.

Features

* VDS = -30V, ID = -9A RDS(ON) < 17mΩ @ VGS=-10V RDS(ON) < 25mΩ @ VGS=-4.5V Schematic diagram
* High Power and current handing capability
* Lead free product is acquired
