PE30P12S - P-Channel Enhancement Mode Power MOSFET

Product Overview

semi one

📥 Download Datasheet

PE30P12S P-Channel Enhancement Mode Power MOSFET by semi one - Datasheet Preview — Datasheet preview – PE30P12S

Datasheet Details

Part number	PE30P12S
Manufacturer	semi one
File Size	722.61 KB
Description	P-Channel Enhancement Mode Power MOSFET
Datasheet	PE30P12S Datasheet

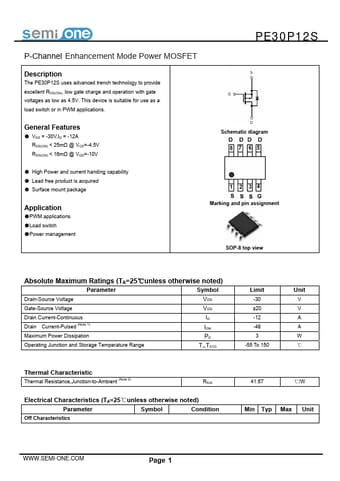

Additional preview pages of the PE30P12S datasheet.

Product details

Description

The PE30P12S uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V.

Features

VDS = -30V,ID = -12A RDS(ON) < 25mΩ @ VGS=-4.5V RDS(ON) < 16mΩ @ VGS=-10V Schematic diagram.
High Power and current handing capability.
Lead free product is acquired.
Surface mount package.
