PE30P17S

P-Channel Enhancement Mode Power MOSFET

ChipSourceTek

📥 Download PDF (1.04 MB)

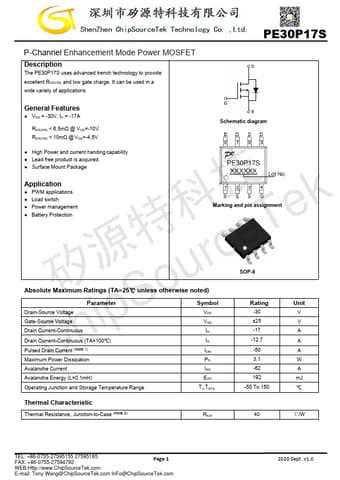

PE30P17S Datasheet Preview Page 1 — Preview of PE30P17S Datasheet

Datasheet Details

Part number:

PE30P17S

Manufacturer:

ChipSourceTek

File Size:

1.04 MB

Download:

📄 Download PE30P17S Datasheet PDF

Description:

P-channel enhancement mode power mosfet.
P-Channel Enhancement Mode Power MOSFET Description The PE30P17S uses advanced trench technology to .
The PE30P17S uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It ca.

✔ PE30P17S Features

VDS = -30V, ID = -17A RDS(ON) < 6.5mΩ @ VGS=-10V RDS(ON) < 10mΩ @ VGS=-4.5V Schematic diagram
High Power and current handing capability
Lead free product is acqu

✔ PE30P17S Application

PE30P17S General Features
VDS = -30V, ID = -17A RDS(ON) < 6.5mΩ @ VGS=-10V RDS(ON) < 10mΩ @ VGS=-4.5V
