uP9508Q Datasheet, Controller, uPI Semiconductor

uP9508Q Features

  • Controller † Intel IMVP8 Compatible
  • Support S-Line Desktop CPU
  • Thermal Sense with VRHOT# Indication † RCOT+TM Control Topology
  • Easy Setting
  • Smooth Mode Tran

PDF File Details

Part number:

uP9508Q

Manufacturer:

uPI Semiconductor

File Size:

647.40kb

Download:

📄 Datasheet

Description:

3/2/1+2/1-phase pwm controller. The uP9508Q is an IMVP8 compliant desktop CPU voltage regulator controller that integrates a 3-phase PWM controller for Vcore and a 2

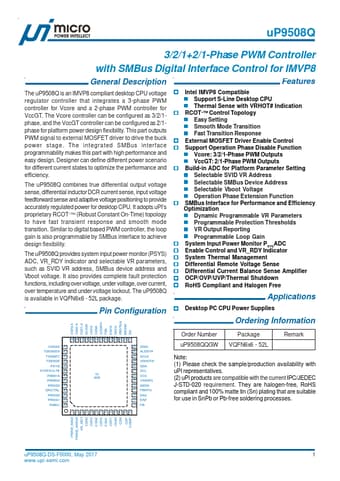

Datasheet Preview: uP9508Q 📥 Download PDF (647.40kb)
Page 2 of uP9508Q Page 3 of uP9508Q

uP9508Q Application

  • Applications † Desktop PC CPU Power Supplies Ordering Information CSP2A CSN1A CSP1A ISUMA CSPA CSNA COMPA FBA EAPA DACA FBRTNA IMONA EN 39 38 37 3
