uP9510 - 3/2/1-Phase Synchronous-Rectified Buck Controller

Datasheet Summary

Description

The uP9510 is a 3/2/1-phase synchronous-rectified buck controller specifically designed to work with 10.8V ~ 13.2V input voltage and deliver high quality output voltage for high-performance graphic processor power.

Features

  • include accurate and reliable over current limit protection, adjustable on-time setting, power saving control input, and power good output. This part is available in VQFN4x4 - 24L package. Ordering Information Features † Support NVIDIA’s Open VReg Type-2+ PWMVID Technology † Input Voltage Range 10.8V ~ 13.2V † Robust Constant On-Time Control † 3/2/1 Phase Operation † Two Integrated MOSFET Drivers with Shoot- Through Protection and Internal Bootstrap Schottky Diode † Adjustable Current Balancing.

📥 Download Datasheet

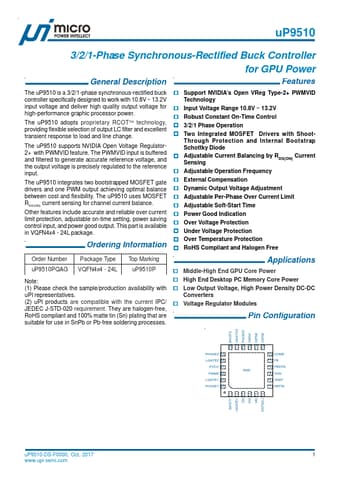

Datasheet preview – uP9510

Datasheet Details

Part number uP9510
Manufacturer uPI Semiconductor
File Size 344.29 KB
Description 3/2/1-Phase Synchronous-Rectified Buck Controller
Datasheet download datasheet uP9510 Datasheet
Additional preview pages of the uP9510 datasheet.

📁 Similar Datasheet

  • UP9523 - 2A Step-Down DC/DC Regulator (UPSemi)
  • UP9971 - N-CHANNEL POWER MOSFET (Unisonic Technologies)
  • UP9972 - N-CHANNEL POWER MOSFET (Unisonic Technologies)
  • UP9T15G - N-CHANNEL POWER MOSFET (Unisonic Technologies)
Other Datasheets by uPI Semiconductor
  • uP9511 - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9511R - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512 - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512Q - 4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512R - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512S - 4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9505U - Dual Output 4+2-Phase PWM Controller
  • uP9508Q - 3/2/1+2/1-Phase PWM Controller

Full PDF Text Transcription

Click to expand full text
uP9510 3/2/1-Phase Synchronous-Rectified Buck Controller for GPU Power General Description The uP9510 is a 3/2/1-phase synchronous-rectified buck controller specifically designed to work with 10.8V ~ 13.2V input voltage and deliver high quality output voltage for high-performance graphic processor power. The uP9510 adopts proprietary RCOTTM technology, providing flexible selection of output LC filter and excellent transient response to load and line change. The uP9510 supports NVIDIA Open Voltage Regulator2+ with PWMVID feature. The PWMVID input is buffered and filtered to generate accurate reference voltage, and the output voltage is precisely regulated to the reference input.
