uP9512R - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller

Datasheet Summary

Features

  • The uP9512R is an 8/7/6/5/4/3/2/1-phase PWM controller specifically designed to provide high-precision output voltage system for next generation GPUs. The uP9512R provides programmable output voltage and active voltage positioning functions to adjust the output voltage as a function of the load current, so it is optimally positioned for a load current transient. The uP9512R supports NVIDIA Open Voltage Regulator type 4i+ with PWMVID feature. The PWMVID input is buffered and filtered to generate.

📥 Download Datasheet

Datasheet preview – uP9512R

Datasheet Details

Part number uP9512R
Manufacturer uPI Semiconductor
File Size 471.24 KB
Description 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
Datasheet download datasheet uP9512R Datasheet
Additional preview pages of the uP9512R datasheet.

📁 Similar Datasheet

  • UP9523 - 2A Step-Down DC/DC Regulator (UPSemi)
  • UP9971 - N-CHANNEL POWER MOSFET (Unisonic Technologies)
  • UP9972 - N-CHANNEL POWER MOSFET (Unisonic Technologies)
  • UP9T15G - N-CHANNEL POWER MOSFET (Unisonic Technologies)
Other Datasheets by uPI Semiconductor
  • uP9512 - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512Q - 4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9512S - 4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9510 - 3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9511 - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9511R - 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller
  • uP9505U - Dual Output 4+2-Phase PWM Controller
  • uP9508Q - 3/2/1+2/1-Phase PWM Controller

Full PDF Text Transcription

Click to expand full text

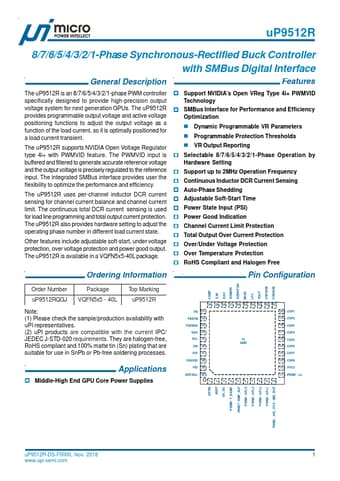

uP9512R 8/7/6/5/4/3/2/1-Phase Synchronous-Rectified Buck Controller with SMBus Digital Interface General Description Features The uP9512R is an 8/7/6/5/4/3/2/1-phase PWM controller specifically designed to provide high-precision output voltage system for next generation GPUs. The uP9512R provides programmable output voltage and active voltage positioning functions to adjust the output voltage as a function of the load current, so it is optimally positioned for a load current transient. The uP9512R supports NVIDIA Open Voltage Regulator type 4i+ with PWMVID feature. The PWMVID input is buffered and filtered to generate accurate reference voltage and the output voltage is precisely regulated to the reference input.
