uP9531Q

Dual Output 3+1 Phase PWM Controller

uPI Semiconductor

uP9531Q Features

*  AMD® SVI2 Compliant  RCOT+TM Control Topology

* Easy Setting

* Fast Transient Response  3-Embedded MOSFET Drivers with Bootstrap Diode  Flexible Operation Phase Configuration

* 3/2/1-Phase for VDD

* 1/0-Phase for VDDA  SVI2 Voltage Regulator Address Selection  Diode Emulation

uP9531Q General Description

The uP9531Q is an AMD® SVI2 compliant mobile CPU voltage regulator controller that integrates a 3-phase PWM controller for VDD and a 1-phase PWM controller for VDDA. The VDD controller can be configured as 3/2/1-phase, and the VDDA controller can be configured as1/0-phase (0 denotes VDDA controller.

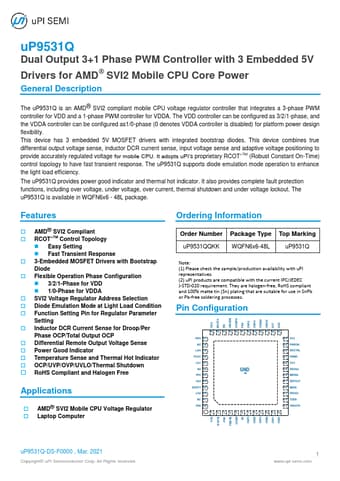

uP9531Q Datasheet (1.38 MB)
