uP9628P

High Performance Single-Phase Synchronous Buck Converter

uP9628P Features

*  Support NVIDIA Open VReg Type 1 Technology  Wide Input Voltage Range from 2.7V to 22V  Output Current Up to 12A  Adjustable Output Voltage from 0.6V to 2.5V  Selectable Operation Frequency from 300kHz to 600kHz  Constant On Time Control  Fast Load Transient Response  Adjustable Soft-Start F

uP9628P General Description

The uP9628P is a high performance synchronous buck converter specifically designed to work with 2.7V~22V input voltage and deliver high quality output voltage for microprocessor and chipset supplies. The uP9628P provides flexible selection of output LC filter and excellent transient response to load.

uP9628P Datasheet (939.23 KB)

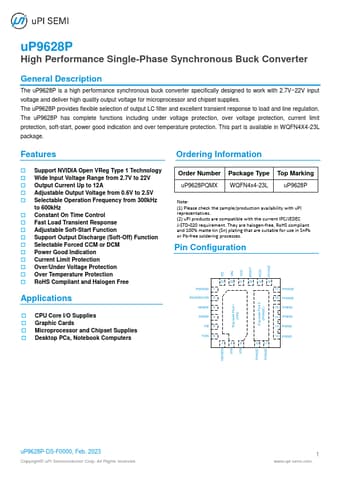

Preview of uP9628P PDF

Datasheet Details

Part number:

uP9628P

Manufacturer:

uPI Semiconductor

File Size:

939.23 KB

Description:

High performance single-phase synchronous buck converter.
