ANBON FMMT495
NPN Transistors
| Part No. | FMMT495 |
|---|---|
| Datasheet | FMMT495 Download |
| Manufacturer | ANBON |
| Description | NPN Transistors |
| Buy | Stock & Price |

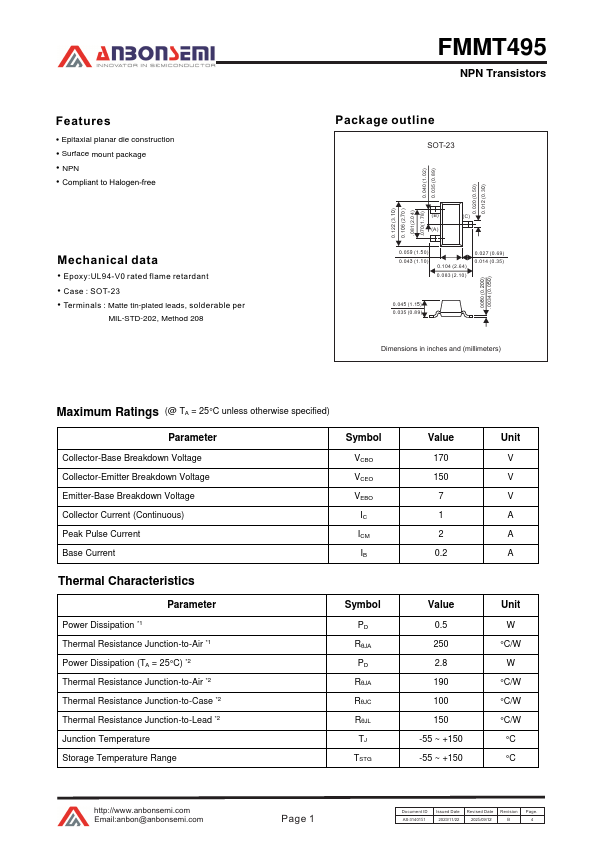

FEATURES
● Epitaxial planar die construction● Surface mount package
● NPN
● Compliant to Halogen-free Mechanical data
● Epoxy:UL94-V0 rated flame retardant
● Case : SOT-23
● Terminals : Matte tin-plated leads, solderable per MIL-STD-202, Method 208 FMMT495 NPN Transistors Package outline SOT-23 0.040 (1.02) 0.035 (0.89) 0.020 (0.50) 0.012 (0.30) 0.122 (3.10) 0.106 (2.70) .081(2.04) .070(1.78) (B) (C) (A) 0.059 (1.50) 0.043 (1.10) 0.104 (2.64) 0.083 (2.10) 0.027 (0.69) 0.014 (0.35) .0080 (0.200) .0034 (0.050) 0.045 (1.15) 0.035 (0.89) Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Peak Pulse Current Base Current Symbol VCBO VCEO VEBO IC ICM IB Thermal Characteristics Parameter Power Dissipation *1 Thermal Resistance Junction-to-Air *1 Power Dissipation (TA = 25°C) *2 Thermal Resistance Junction-to-A...
