Diodes Incorporated FMMT495
150V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
| Part No. | FMMT495 |
|---|---|
| Datasheet | FMMT495 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 150V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR |
| Buy | Stock & Price |

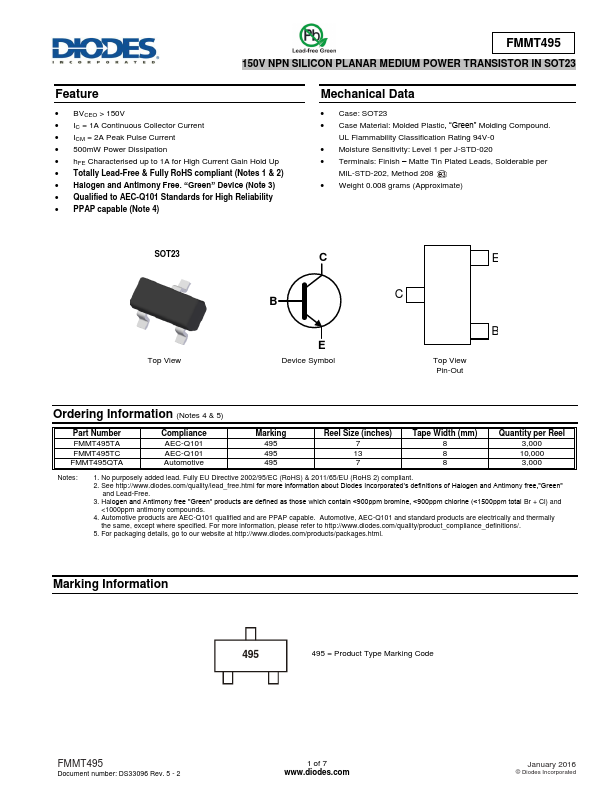

MECHANICAL DATA
● Case: SOT23● Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight 0.008 grams (Approximate) SOT23 Top View C B E Device Symbol E C B Top View Pin-Out Ordering Information (Notes 4 & 5) Part Number FMMT495TA FMMT495TC FMMT495QTA Compliance AEC-Q101 AEC-Q101 Automotive Marking 495 495 495 Reel Size (inches) 7 13 7 Tape Width (mm) 8 8 8 Quantity per Reel 3,000 10,000 3,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free. 3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. Automotive products are AEC-Q101 qualified and are PPAP capable.
