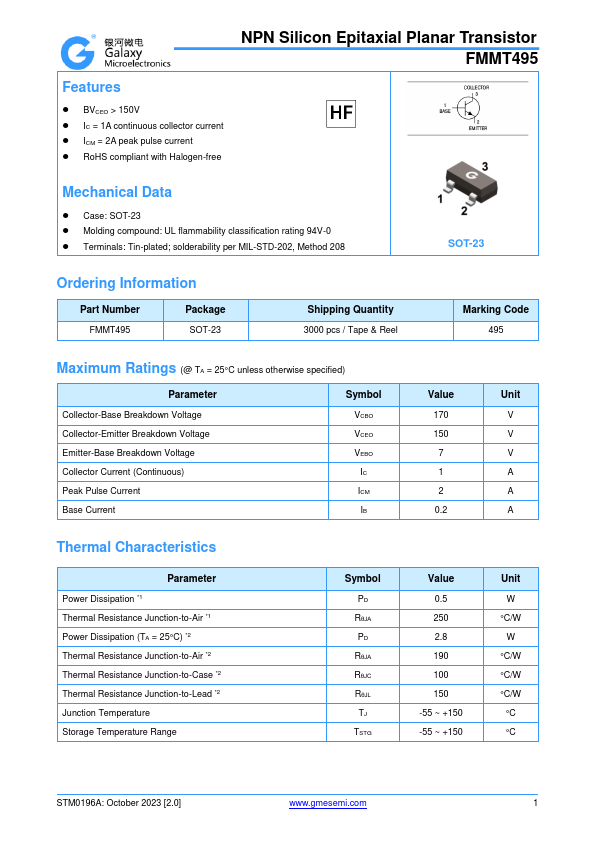

Galaxy Century Microelectronics FMMT495
NPN Silicon Epitaxial Planar Transistor
| Part No. | FMMT495 |
|---|---|
| Datasheet | FMMT495 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
FEATURES
● BVCEO > 150V● IC = 1A continuous collector current
● ICM = 2A peak pulse current
● RoHS compliant with Halogen-free
MECHANICAL DATA
● Case: SOT-23● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number FMMT495 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 495
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Peak Pulse Current Base Current Symbol VCBO VCEO VEBO IC ICM IB Value 170 150 7 1 2 0.2 Unit V V V A A A Thermal Characteristics Parameter Power Dissipation *1 Thermal Resistance Junction-to-Air *1 Power Dissipation (TA = 25°C) *2 Thermal Resistance Junction-to-Air *2 Thermal Resistance Junction-to-Case *2 Thermal Resistance Junction-to-Lead *2 Junction Temperature Storage Temperature Ran...
