2SB1124 Datasheet | AiT Semiconductor

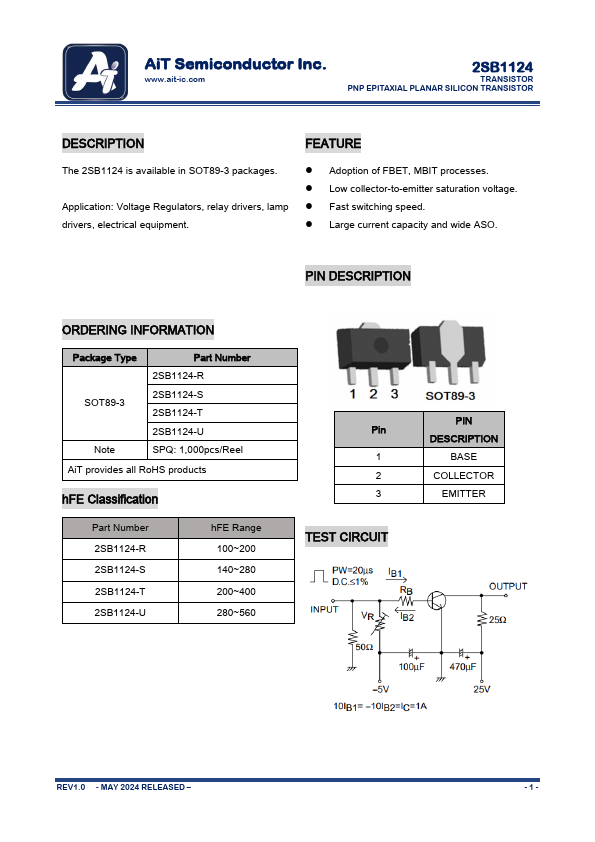

DESCRIPTION FEATURE The 2SB1124 is available in SOT89-3 packages. - Adoption of FBET, MBIT processes. - Low collector-to-emitter saturation voltage. Application: Voltage Regulators, relay drivers, lamp - Fast switching speed. drivers, electrical equipment. - Large current capacity and wide ASO. PIN DESCRIPTION ORDERING INFORMATION Package Type Part Number 2SB1124-R SOT89-3 2SB1124-S 2SB1124-T 2SB1124-U Note SPQ: 1,000pcs/Reel Ai T provides all Ro HS products h FE Classification Part Number 2SB1124-R 2SB1124-S 2SB1124-T 2SB1124-U h FE Range 100~200 140~280 200~400 280~560 Pin 1 2 3 TEST CIRCUIT PIN DESCRIPTION BASE COLLECTOR EMITTER REV1.0 - MAY 2024 RELEASED - -1- Ai T Semiconductor Inc. .ait-ic. TRANSISTOR PNP EPITAXIAL PLANAR SILICON TRANSISTOR ABSOLUTE MAXIMUM RATINGS TA=25°C VCBO, Collector-base voltage -60V VCEO, Collector-emitter voltage -50V VEBO, Emitter-base voltage -6A IC, Collector...
