AO3418 - 30V N-Channel MOSFET

Description

The AO3418 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.

This device is suitable for use as a load switch or in PWM applications.

📥 Download Datasheet

📁 Similar Datasheet

  • AO3418 - N-Channel MOSFET (KERSEMI)
  • AO3418L - N-Channel MOSFET (KERSEMI)
  • AO3411 - P-Channel MOSFET (Freescale)
  • AO3414 - N-Channel MOSFET (Kexin)
  • AO3414 - N-Channel MOSFET (VBsemi)
  • AO3414A - N-Channel Enhancement MOSFET (UMW)
  • AO3414A - N-Channel MOSFET (VBsemi)
  • AO3415 - P-Channel MOSFET (VBsemi)
  • AO3415 - P-Channel Enhancement-Mode MOSFET (HAOHAI)
  • AO3415A - P-Channel MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors

Full PDF Text Transcription

Click to expand full text

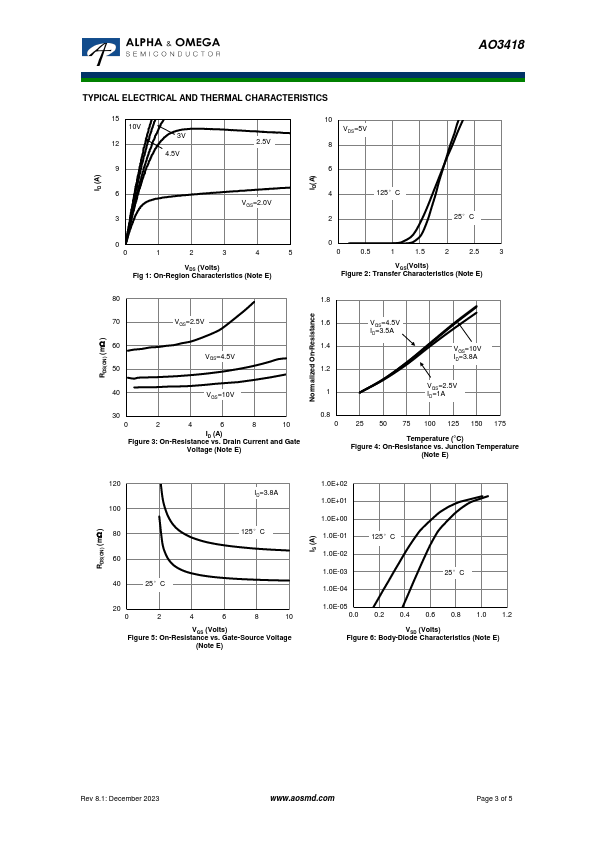

AO3418 30V N-Channel MOSFET General Description Product Summary The AO3418 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) RDS(ON) (at VGS =2.5V) 30V 3.8A < 55mW < 65mW < 85mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current TA=25°C TA=70°C ID Pulsed Drain Current C IDM TA=25°C Power Dissipation B TA=70°C PD Junction and Storage Temperature Range TJ, TSTG G S Maximum 30 ±12 3.8 3.1 15 1.4 0.
