Datasheet Details
| Part number | AO4202 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors |
| File Size | 292.67 KB |
| Description | 30V N-Channel MOSFET |
| Download | AO4202 Download (PDF) |
|
|
Overview: AO4202 30V N-Channel MOSFET General.
| Part number | AO4202 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors |
| File Size | 292.67 KB |
| Description | 30V N-Channel MOSFET |
| Download | AO4202 Download (PDF) |
|
|
|

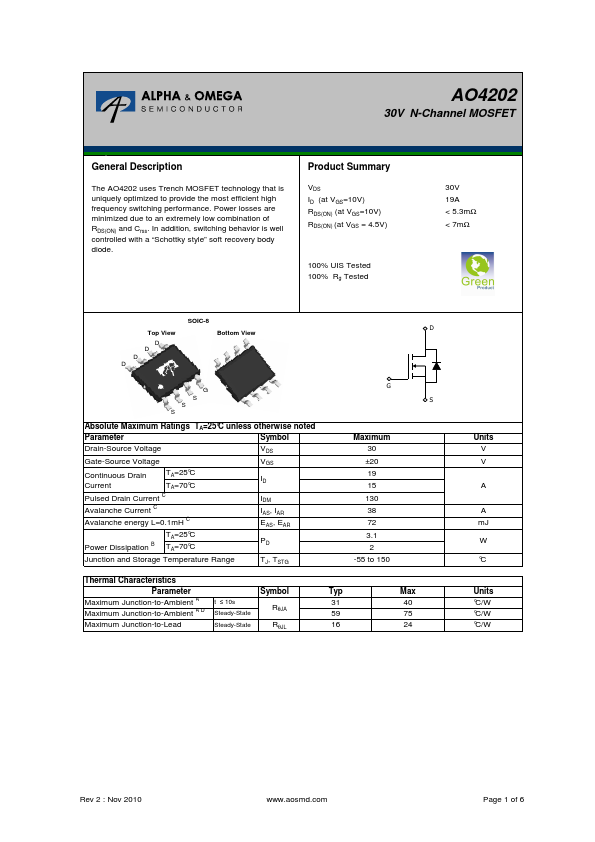

The AO4202 uses Trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.
Power losses are minimized due to an extremely low combination of RDS(ON) and Crss.
In addition, switching behavior is well controlled with a “Schottky style” soft recovery body diode.
