AO4918 - Dual N-Channel Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

The AO4918 uses advanced trench technology to provide excellent R DS(ON) and low gate charge.

The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters.

Features

  • Q1 Q2 VDS (V) = 30V VDS(V) = 30V ID = 9.3A (VGS = 10V) ID=8.3A (VGS = 10V RDS(ON) < 14.5mΩ.

📥 Download Datasheet

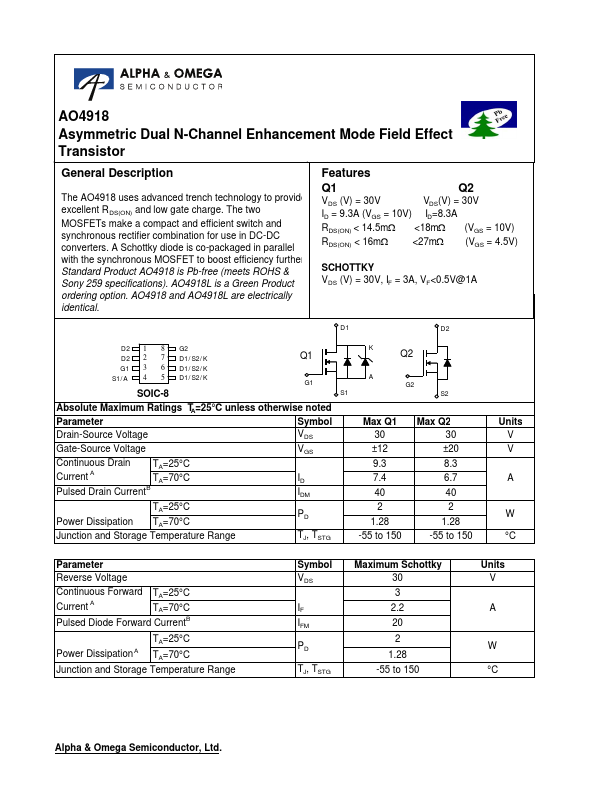

Datasheet preview – AO4918

Datasheet Details

Part number AO4918
Manufacturer Alpha & Omega Semiconductors
File Size 174.67 KB
Description Dual N-Channel Enhancement Mode Field Effect Transistor
Datasheet download datasheet AO4918 Datasheet

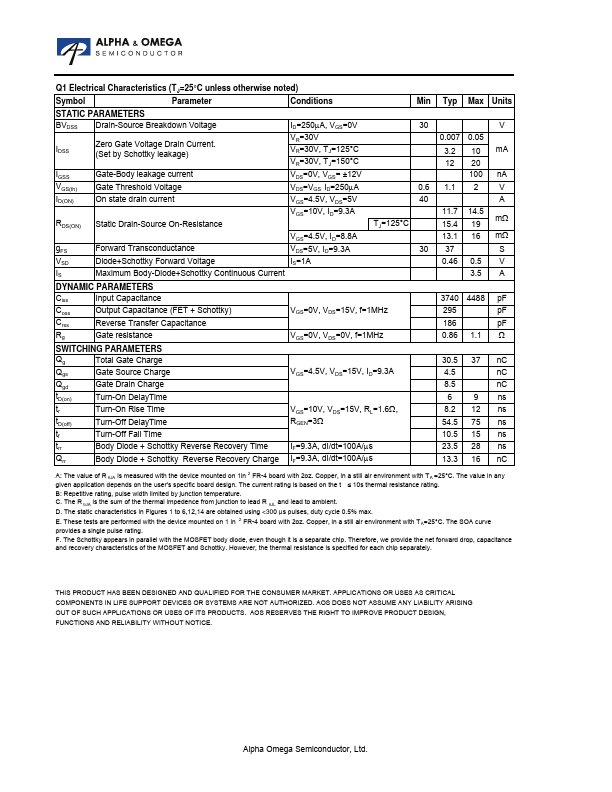

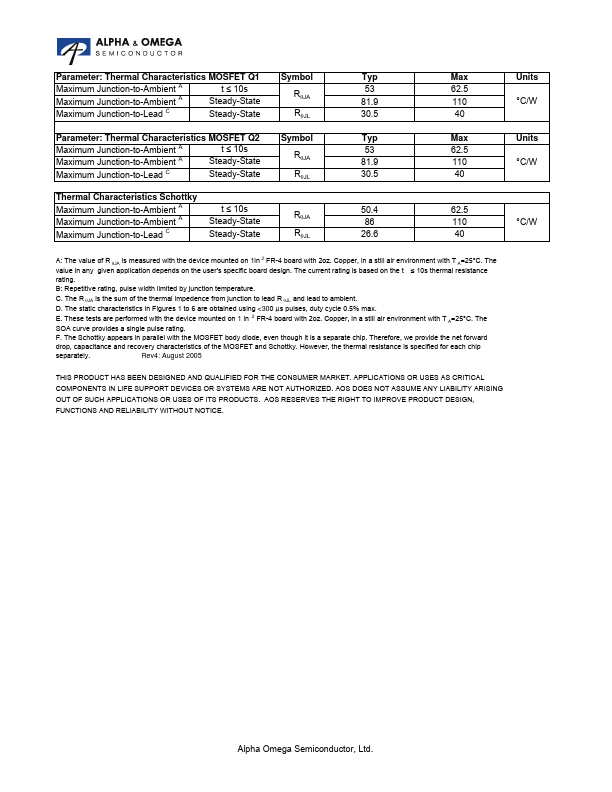

Additional preview pages of the AO4918 datasheet.

📁 Similar Datasheet

  • AO4912 - Dual N-Channel 30V MOSFET (VBsemi)
  • AO4914 - Dual N-Channel FET (VBsemi)
  • AO4900 - Dual N-Channel MOSFET (VBsemi)
  • AO4240 - N-Channel MOSFET (Kexin)
  • AO4240-HF - N-Channel MOSFET (Kexin)
  • AO4260 - N-Channel MOSFET (Kexin)
  • AO4264 - N-Channel MOSFET (Kexin)
  • AO4264-HF - N-Channel MOSFET (Kexin)
  • AO4286-HF - N-Channel MOSFET (Kexin)
  • AO4294 - N-Channel 100V Power MOSFET (VBsemi)
Other Datasheets by Alpha & Omega Semiconductors
  • AO4918A - Dual N-Channel Enhancement Mode Field Effect Transistor
  • AO4912 - Dual N-Channel Enhancement Mode Field Effect Transistor
  • AO4914 - 30V Dual N-Channel MOSFET
  • AO4914A - Dual N-Channel Enhancement Mode Field Effect Transistor
  • AO4916 - 30V Dual N-Channel MOSFET
  • AO4916A - Dual N-Channel Enhancement Mode Field Effect Transistor
  • AO4916L - Dual N-Channel Enhancement Mode Field Effect Transistor
  • AO4900 - Dual N-Channel Enhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text
AO4918 Asymmetric Dual N-Channel Enhancement Mode Field Effect Transistor General Description The AO4918 uses advanced trench technology to provide excellent R DS(ON) and low gate charge. The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters. A Schottky diode is co-packaged in parallel www.DataSheet4U.com with the synchronous MOSFET to boost efficiency further Standard Product AO4918 is Pb-free (meets ROHS & Sony 259 specifications). AO4918L is a Green Product ordering option. AO4918 and AO4918L are electrically identical. Features Q1 Q2 VDS (V) = 30V VDS(V) = 30V ID = 9.3A (VGS = 10V) ID=8.3A (VGS = 10V RDS(ON) < 14.5mΩ <18mΩ (VGS = 10V) <27mΩ (VGS = 4.5V) RDS(ON) < 16mΩ SCHOTTKY VDS (V) = 30V, IF = 3A, VF<0.
