PCM1712U Datasheet | Burr-Brown

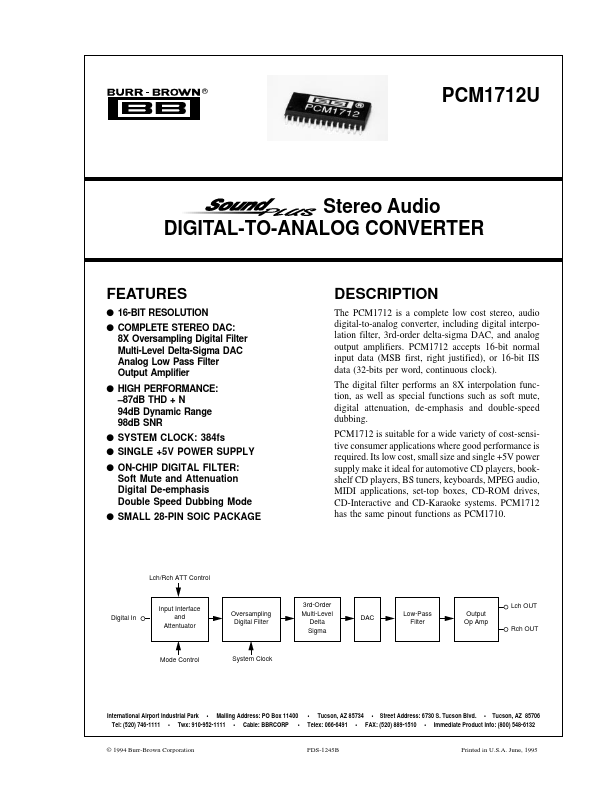

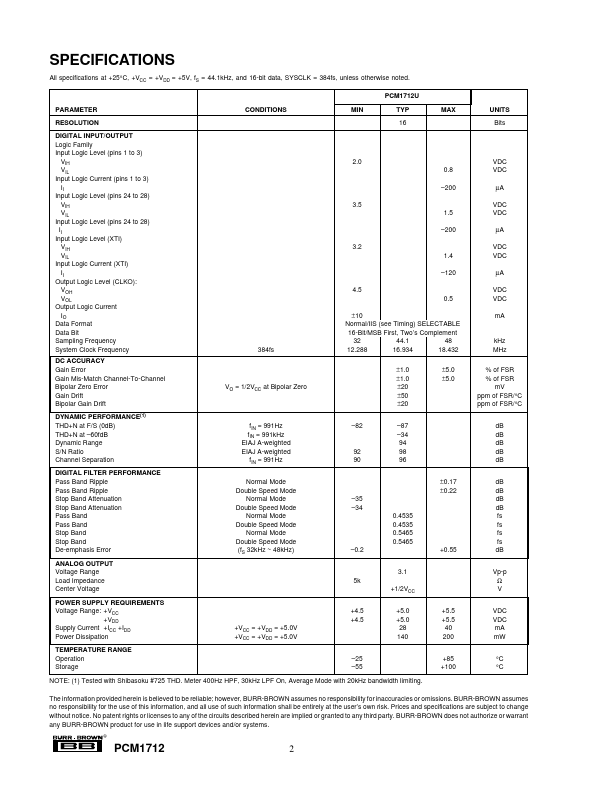

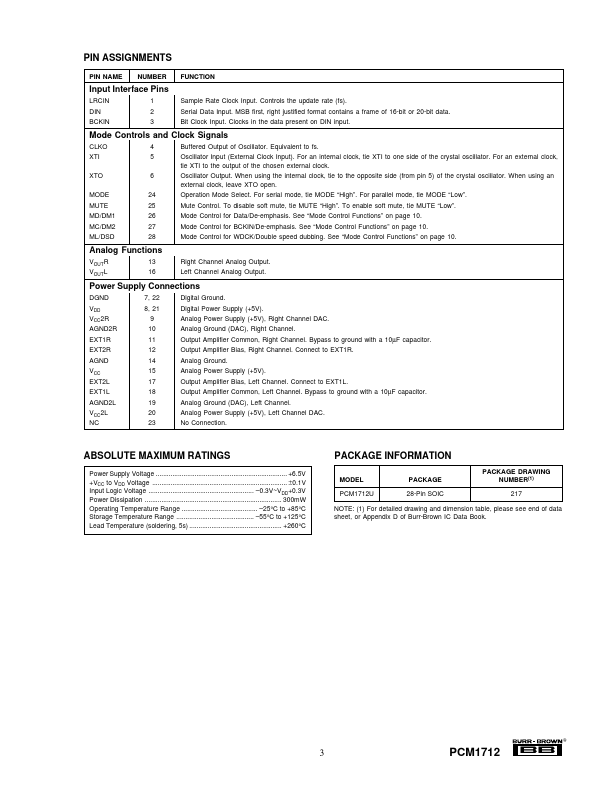

® 49% Stereo Audio DIGITAL-TO-ANALOG CONVERTER Features q 16-BIT RESOLUTION q PLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier q HIGH PERFORMANCE: - 87d B THD + N 94d B Dynamic Range 98d B SNR q SYSTEM CLOCK: 384fs q SINGLE +5V POWER SUPPLY q ON-CHIP DIGITAL FILTER: Soft Mute and Attenuation Digital De-emphasis Double Speed Dubbing Mode q SMALL 28-PIN SOIC PACKAGE DESCRIPTION The PCM1712 is a plete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers. PCM1712 accepts 16-bit normal input data (MSB first, right justified), or 16-bit IIS data (32-bits per word, continuous clock). The digital filter performs an 8X interpolation function, as well as special functions such as soft mute, digital attenuation, de-emphasis and double-speed dubbing. PCM1712 is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. Its low cost, small size and single +5V power supply make it ideal for automotive CD players, bookshelf CD players, BS tuners, keyboards, MPEG audio, MIDI applications, set-top boxes, CD-ROM drives, CD-Interactive and CD-Karaoke systems. PCM1712 has the same pinout functions as PCM1710. Lch/Rch ATT Control Digital In Input Interface and Attentuator Oversampling Digital Filter Mode Control System Clock 3rd-Order Multi-Level Delta Sigma Low-Pass Filter Output Op Amp Lch OUT Rch OUT International Airport Industrial Park - Mailing Address: PO Box 11400 - Tucson, AZ 85734 - Street Address: 6730 S. Tucson Blvd. - Tucson, AZ 85706 Tel: (520) 746-1111 - Twx: 910-952-1111 - Cable: BBRCORP - Telex: 066-6491 - FAX: (520)...
