PCM1718E - Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1718 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers.

PCM1718 is fabricated on a highly advanced 0.6µ CMOS process.

Features

  • q.

📥 Download Datasheet

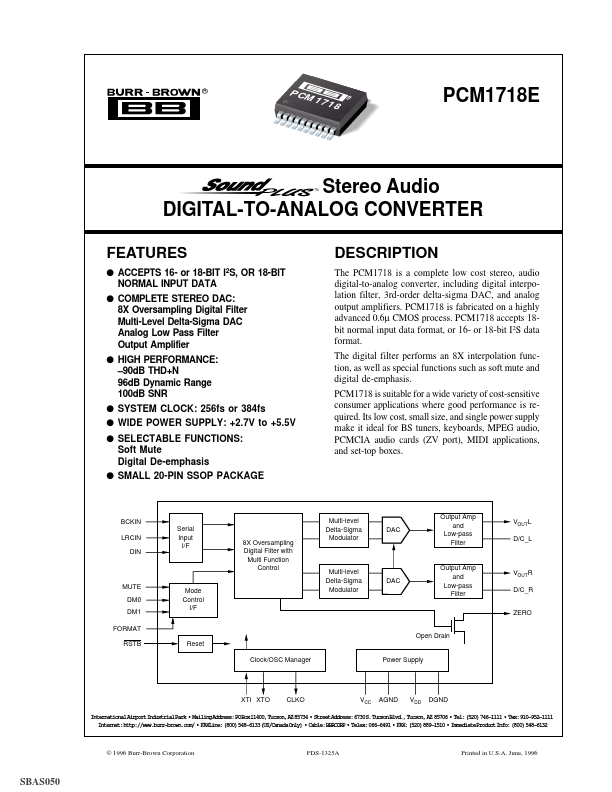

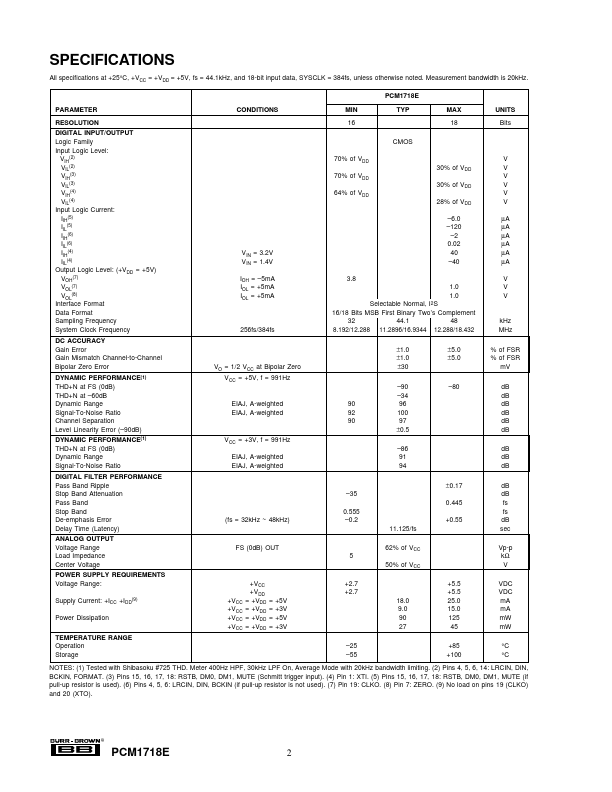

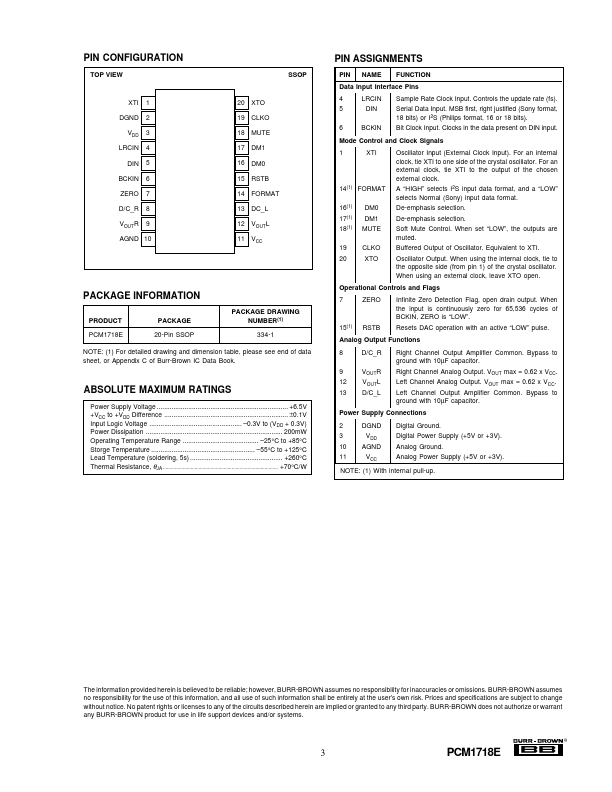

Datasheet preview – PCM1718E

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1715U - DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1719 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter

Full PDF Text Transcription

Click to expand full text
® PCM1718 ® PCM1718E TM Stereo Audio DIGITAL-TO-ANALOG CONVERTER FEATURES q ACCEPTS 16- or 18-BIT I2S, OR 18-BIT NORMAL INPUT DATA q COMPLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier q HIGH PERFORMANCE: –90dB THD+N 96dB Dynamic Range 100dB SNR q SYSTEM CLOCK: 256fs or 384fs q WIDE POWER SUPPLY: +2.7V to +5.5V q SELECTABLE FUNCTIONS: Soft Mute Digital De-emphasis q SMALL 20-PIN SSOP PACKAGE DESCRIPTION The PCM1718 is a complete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers. PCM1718 is fabricated on a highly advanced 0.6µ CMOS process. PCM1718 accepts 18bit normal input data format, or 16- or 18-bit I2S data format.
