PCM1715U - DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1715 is a low cost, dual voltage output CMOS digital-to-analog converter.

Incorporated into the PCM1715 is a unique multi-level 4th-order deltasigma architecture that eliminates influence from input clock jitter and RF interferance resulting in truly superior performance.

Features

  • q DUAL MULTI-LEVEL NOISE.

📥 Download Datasheet

Datasheet preview – PCM1715U

📁 Similar Datasheet

  • PCM1701 - 18-Bit Serial Input D/A Converter (ETC)
  • PCM1742 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1748 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1753 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1753-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1754 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1754-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1755 - Digital-to-Analog Converter (Texas Instruments)
  • PCM1789 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1789-Q1 - Audio Digital-to-Analog Converter (Texas Instruments)
Other Datasheets by Burr-Brown
  • PCM1710U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1712U - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1716 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1717 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1718E - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1719 - Stereo Audio DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter
  • PCM1700U - dual 18-bit digital-to-analog converter

Full PDF Text Transcription

Click to expand full text

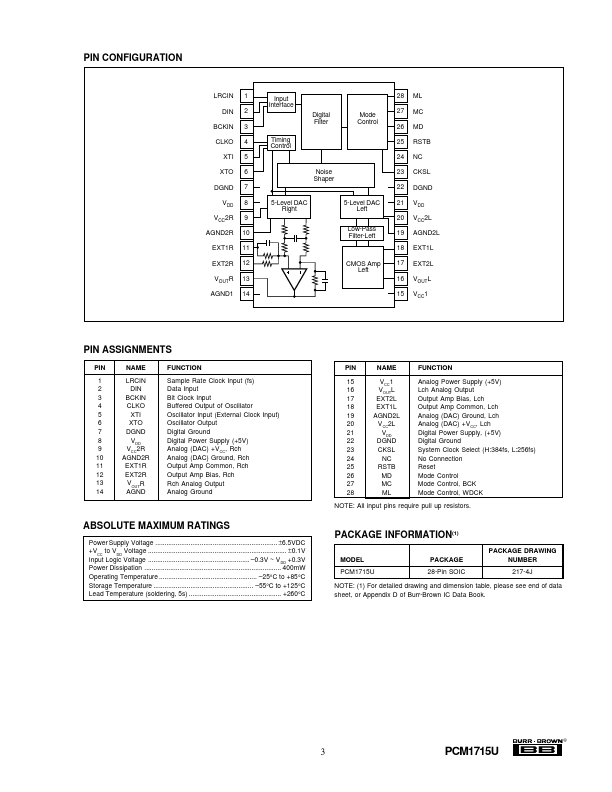

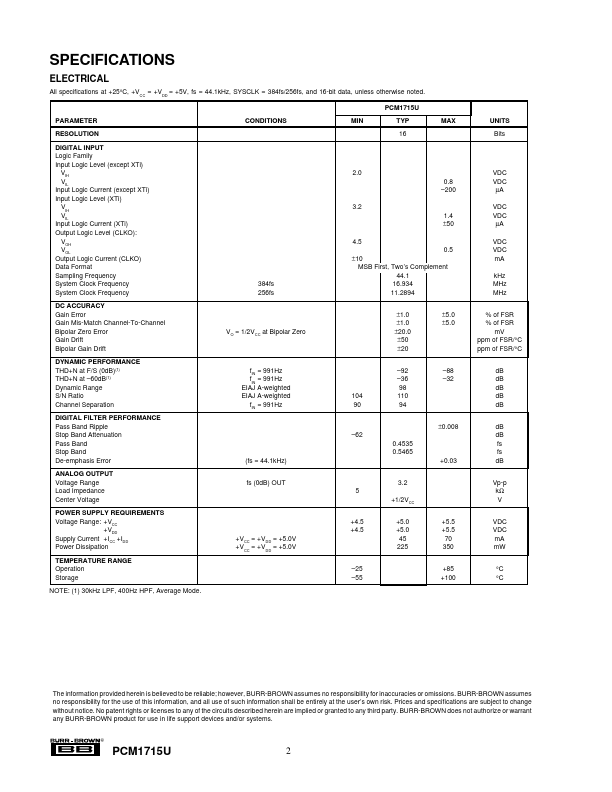

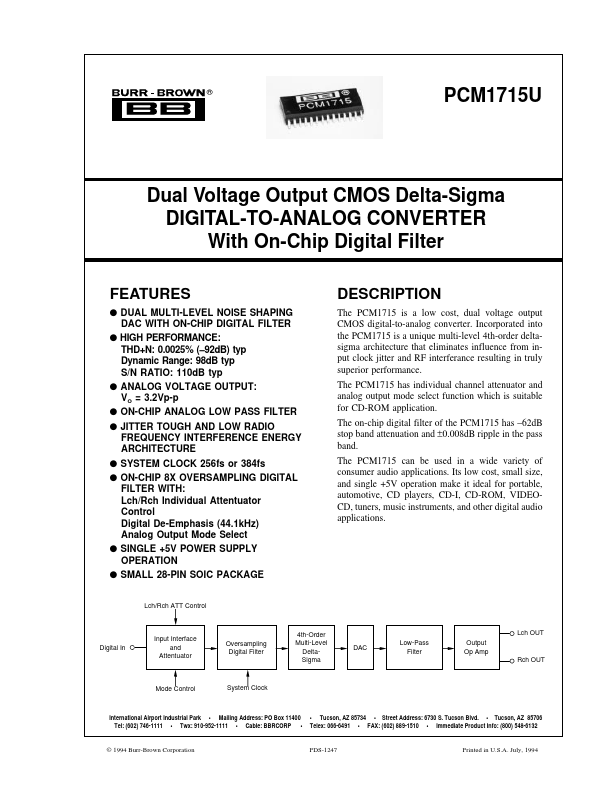

® 49% FPO PCM1715U Dual Voltage Output CMOS Delta-Sigma DIGITAL-TO-ANALOG CONVERTER With On-Chip Digital Filter FEATURES q DUAL MULTI-LEVEL NOISE SHAPING DAC WITH ON-CHIP DIGITAL FILTER q HIGH PERFORMANCE: THD+N: 0.0025% (–92dB) typ Dynamic Range: 98dB typ S/N RATIO: 110dB typ q ANALOG VOLTAGE OUTPUT: VO = 3.2Vp-p q ON-CHIP ANALOG LOW PASS FILTER q JITTER TOUGH AND LOW RADIO FREQUENCY INTERFERENCE ENERGY ARCHITECTURE q SYSTEM CLOCK 256fs or 384fs q ON-CHIP 8X OVERSAMPLING DIGITAL FILTER WITH: Lch/Rch Individual Attentuator Control Digital De-Emphasis (44.1kHz) Analog Output Mode Select q SINGLE +5V POWER SUPPLY OPERATION q SMALL 28-PIN SOIC PACKAGE DESCRIPTION The PCM1715 is a low cost, dual voltage output CMOS digital-to-analog converter.
