PCM1716 - 24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER

Burr-Brown (Texas Instruments)

General Description

The PCM1716 is designed for Mid to High grade Digital Audio applications which achieve 96kHz sampling rates with 24-bit audio data.

Key Features

📥 Download Datasheet

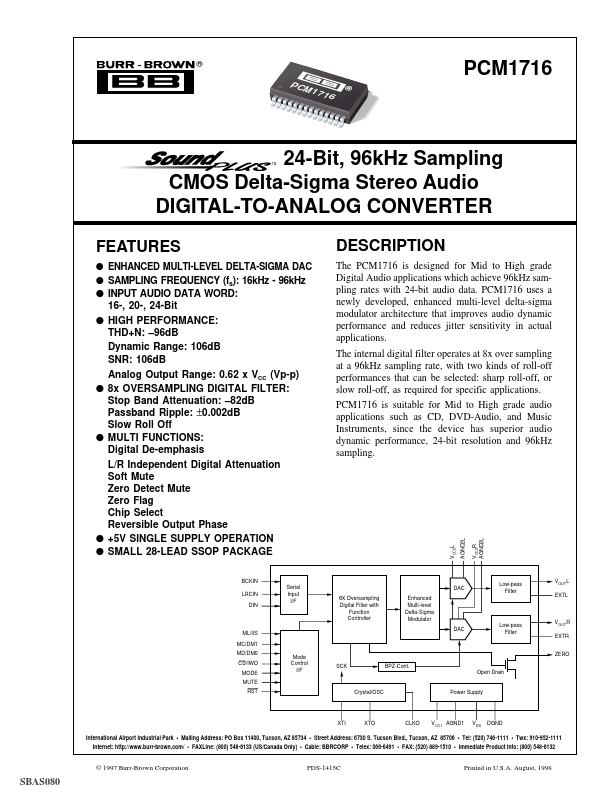

PCM1716 24-bit stereo audio digital-to-analog converter by Burr-Brown (Texas Instruments) - Datasheet Preview

Datasheet Details

Part number	PCM1716
Manufacturer	Burr-Brown (Texas Instruments)
File Size	159.24 KB
Description	24-Bit Stereo Audio DIGITAL-TO-ANALOG CONVERTER
Datasheet	PCM1716 Datasheet

Full PDF Text Transcription for PCM1716 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for PCM1716. For precise diagrams, and layout, please refer to the original PDF.

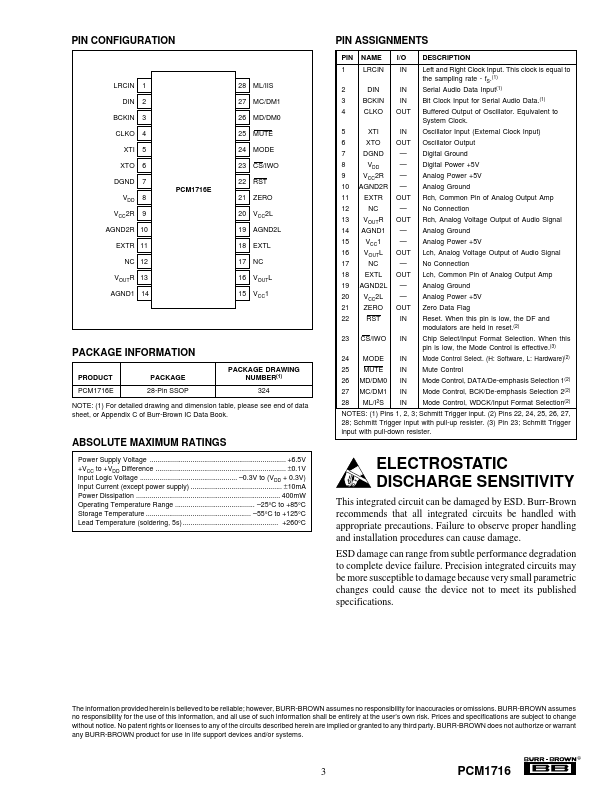

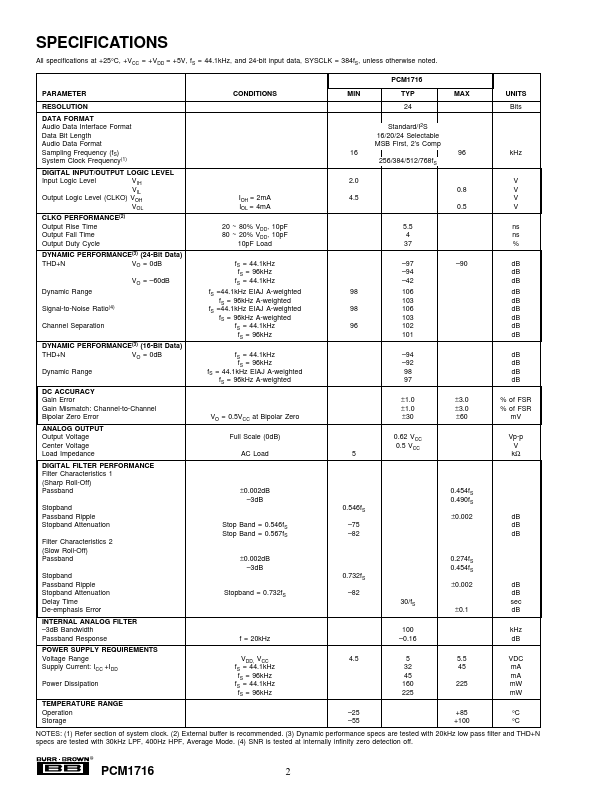

® 49% PCMF17P16O PCM1716 TM 24-Bit, 96kHz Sampling CMOS Delta-Sigma Stereo Audio DIGITAL-TO-ANALOG CONVERTER FEATURES q ENHANCED MULTI-LEVEL DELTA-SIGMA DAC q SAMPLING FR...

View more extracted text

ONVERTER FEATURES q ENHANCED MULTI-LEVEL DELTA-SIGMA DAC q SAMPLING FREQUENCY (fs): 16kHz - 96kHz q INPUT AUDIO DATA WORD: 16-, 20-, 24-Bit q HIGH PERFORMANCE: THD+N: –96dB Dynamic Range: 106dB SNR: 106dB Analog Output Range: 0.62 x VCC (Vp-p) q 8x OVERSAMPLING DIGITAL FILTER: Stop Band Attenuation: –82dB Passband Ripple: ±0.
