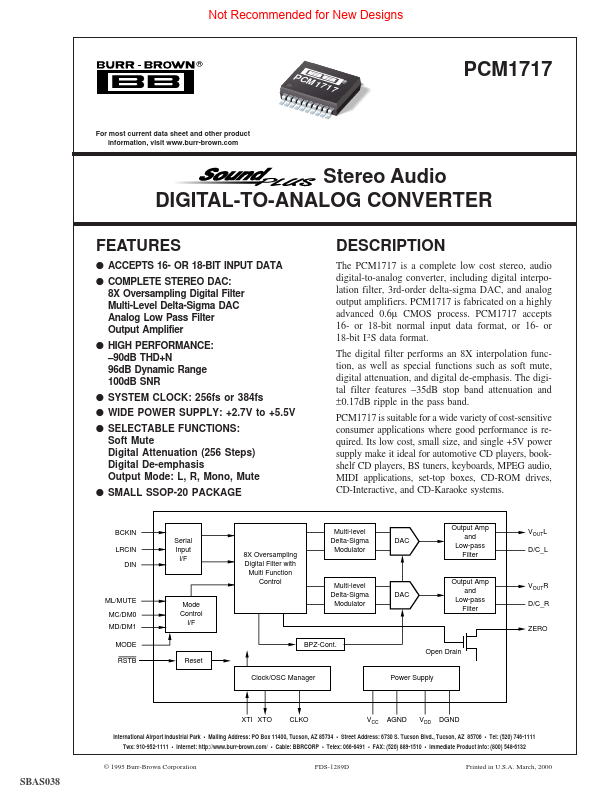

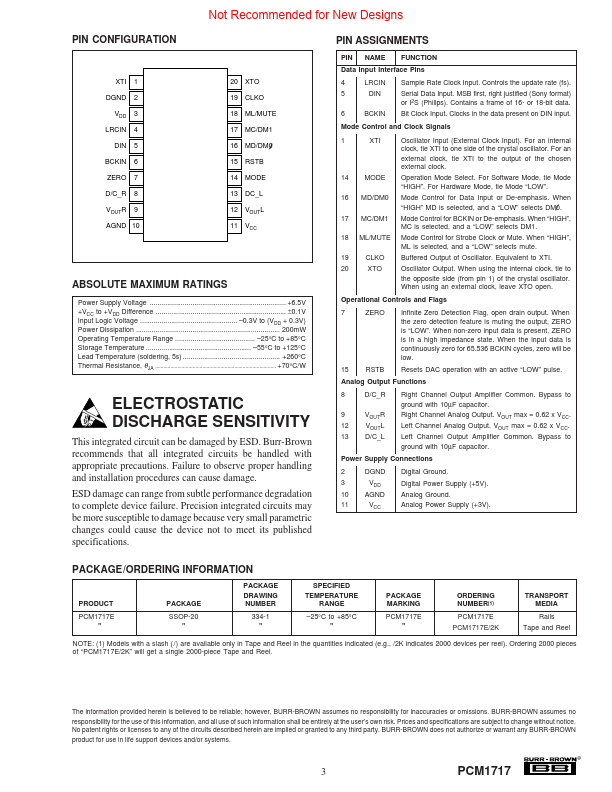

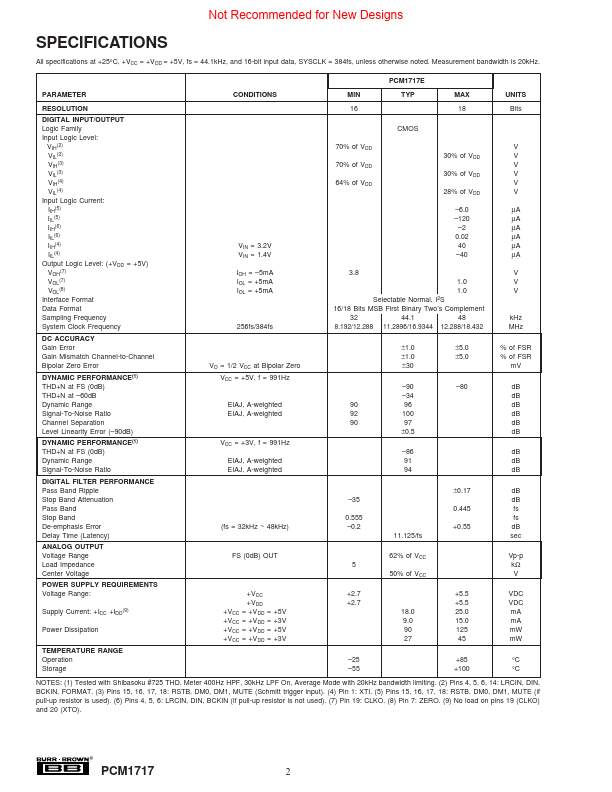

Not Remended for New Designs ® PCMF4197P1%O7 ® For most current data sheet and other product information, visit .burr-brown. Stereo Audio DIGITAL-TO-ANALOG CONVERTER Features q ACCEPTS 16- OR 18-BIT INPUT DATA q PLETE STEREO DAC: 8X Oversampling Digital Filter Multi-Level Delta-Sigma DAC Analog Low Pass Filter Output Amplifier q HIGH PERFORMANCE: - 90d B THD+N 96d B Dynamic Range 100d B SNR q SYSTEM CLOCK: 256fs or 384fs q WIDE POWER SUPPLY: +2.7V to +5.5V q SELECTABLE FUNCTIONS: Soft Mute Digital Attenuation (256 Steps) Digital De-emphasis Output Mode: L, R, Mono, Mute q SMALL SSOP-20 PACKAGE DESCRIPTION The PCM1717 is a plete low cost stereo, audio digital-to-analog converter, including digital interpolation filter, 3rd-order delta-sigma DAC, and analog output amplifiers. PCM1717 is fabricated on a highly advanced 0.6µ CMOS process. PCM1717 accepts 16- or 18-bit normal input data format, or 16- or 18-bit I2S data format. The digital filter performs an 8X interpolation function, as well as special functions such as soft mute, digital attenuation, and digital de-emphasis. The digital filter Features - 35d B stop band attenuation and ±0.17d B ripple in the pass band. PCM1717 is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. Its low cost, small size, and single +5V power supply make it ideal for automotive CD players, bookshelf CD players, BS tuners, keyboards, MPEG audio, MIDI applications, set-top boxes, CD-ROM drives, CD-Interactive, and CD-Karaoke systems. BCKIN LRCIN ML/MUTE MC/DM0 MD/DM1 MODE RSTB Serial Input I/F Mode Control I/F Reset 8X Oversampling Digital Filter with Multi Function Control Multi-level Delta-Sigma Modulator Multi-level Delta-Sigma Modulator Output Amp and Low-pass Filter Output Amp and Low-pass Filter BPZ-Cont. Clock/OSC...
