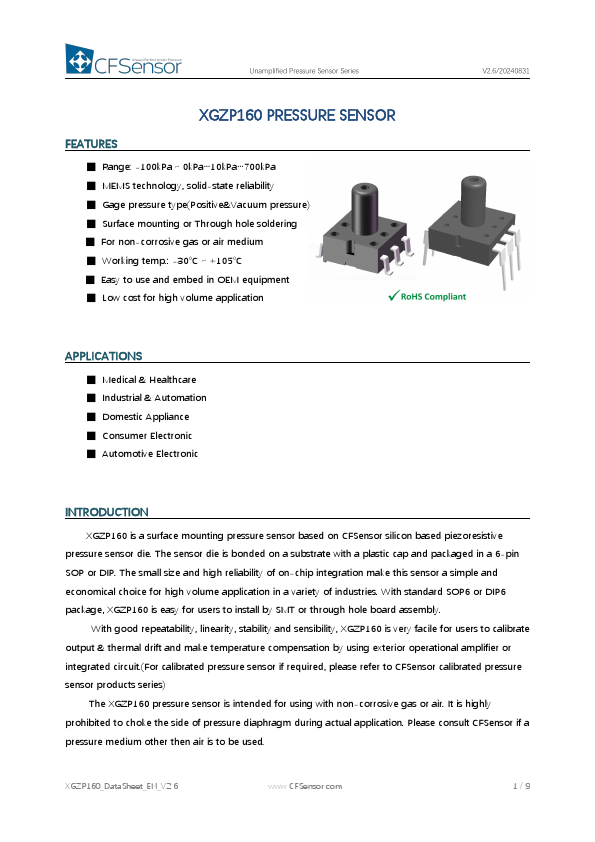

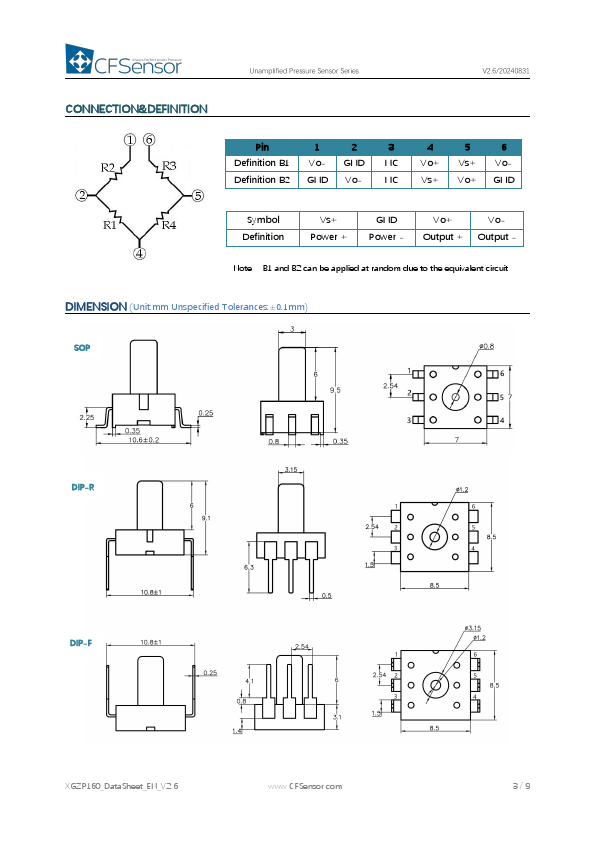

XGZP160
XGZP160 is Unamplified Pressure Sensor manufactured by CFSensor.
FEATURES
- Range: -100k Pa～0k Pa…10k Pa…700k Pa
- MEMS technology, solid-state reliability
- Gage pressure type(Positive&Vacuum pressure)
- Surface mounting or Through hole soldering
- For non-corrosive gas or air medium
- Working temp.: -30℃～+105℃
- Easy to use and embed in OEM equipment
- Low cost for high volume application
V2.6/20240831
APPLICATIONS
- Medical & Healthcare
- Industrial & Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP160 is a surface mounting pressure sensor based on CFSensor silicon based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP or DIP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP6 or DIP6 package, XGZP160 is easy for users to install by SMT or through hole board assembly.
With good repeatability, linearity, stability and sensibility, XGZP160 is very facile for users to calibrate output & thermal drift and make temperature pensation by using exterior operational amplifier or integrated circuit.(For calibrated pressure sensor if required, please refer to CFSensor calibrated pressure sensor products series)
The XGZP160 pressure sensor is intended for using with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult CFSensor if a pressure medium other then air is to be used.
XGZP160_Data Sheet_EN_V2.6
.CFSensor.
1/9
Unamplified Pressure Sensor Series
V2.6/20240831

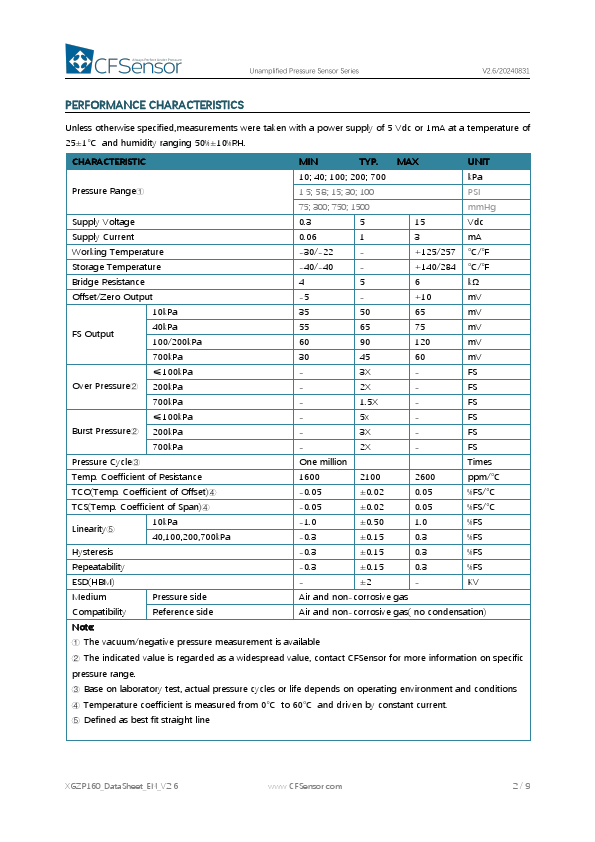

PERFORMANCE CHARACTERISTICS
Unless otherwise specified,measurements were taken with a power supply of 5 Vdc or 1m A at a temperature of 25±1℃ and humidity ranging 50%±10%RH.
CHARACTERISTIC
TYP. MAX
UNIT
10; 40; 100; 200; 700 k Pa
Pressure Range①
1.5; 5.8; 15; 30; 100
75; 300; 750; 1500... mm Hg
Supply...
