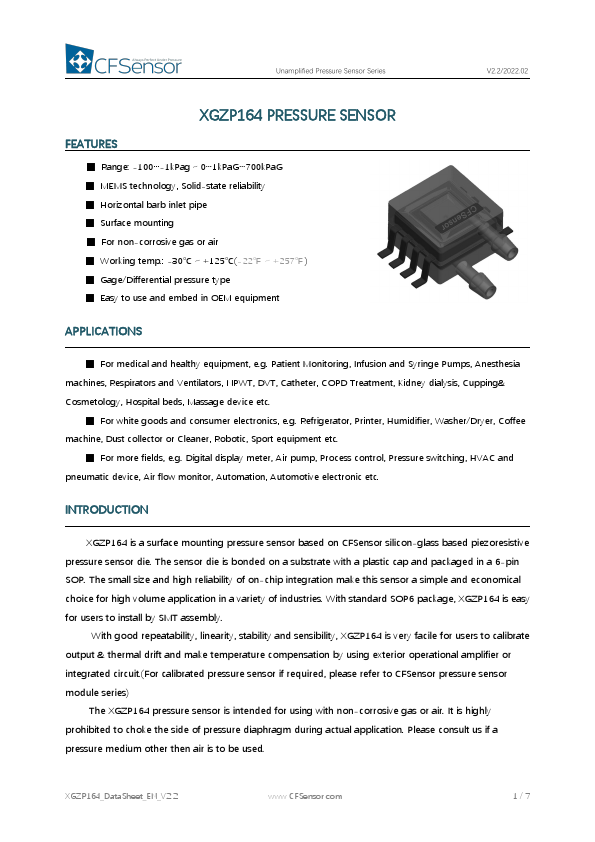

CFSensor XGZP164
XGZP164 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries.| Part No. | XGZP164 |
|---|---|
| Datasheet | XGZP164 Download |
| Manufacturer |  CFSensor |
| Description | Unamplified Pressure Sensor |
| Buy | Stock & Price |
FEATURES
● Range: -100…-1kPag～0…1kPaG…700kPaG● MEMS technology, Solid-state reliability
● Horizontal barb inlet pipe
● Surface mounting
● For non-corrosive gas or air
● Working temp.: -30℃～+125℃(-22℉～+257℉)
● Gage/Differential pressure type
● Easy to use and embed in OEM equipment
APPLICATIONS
● For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping& Cosmetology, Hospital beds, Massage device etc.● For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic, Sport equipment etc.
● For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive electronic etc. INTRODUCTION With standard SOP6 package, XGZP164 is easy for users to install by SMT assembly. With good...
