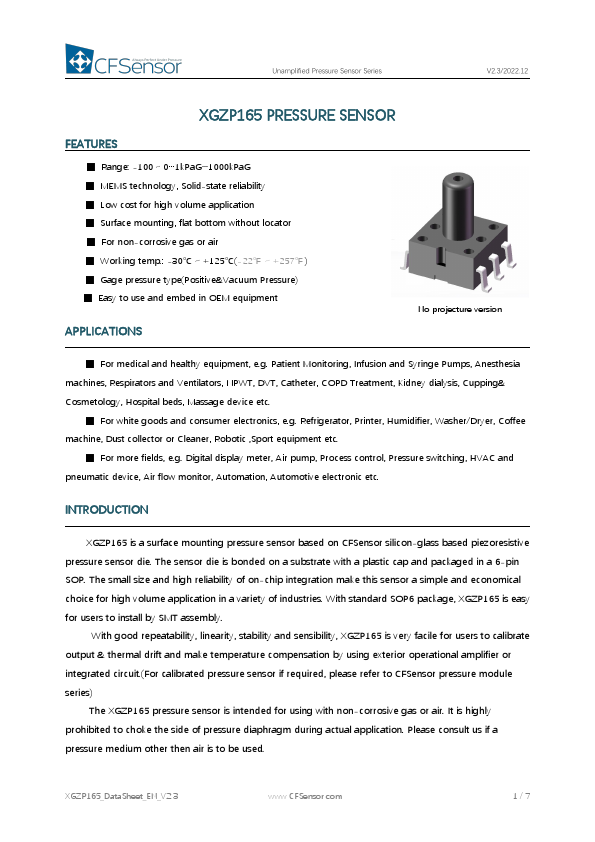

FEATURES - Range: -100～0…1k Pa G…1000k Pa G - MEMS technology, Solid-state reliability - Low cost for high volume application - Surface mounting, flat bottom without locator - For non-corrosive gas or air - Working temp.: -30℃～+125℃(-22℉～+257℉) - Gage pressure type(Positive&Vacuum Pressure) - Easy to use and embed in OEM equipment APPLICATIONS No projecture version - For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping& Cosmetology, Hospital beds, Massage device etc. - For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic ,Sport equipment etc. - For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive electronic etc. INTRODUCTION XGZP165 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP6 package, XGZP165 is easy for users to install by SMT assembly. With good repeatability, linearity, stability and sensibility, XGZP165 is very facile for users to calibrate output & thermal drift and make temperature pensation by using exterior operational amplifier or integrated circuit.(For calibrated pressure sensor if required, please refer to CFSensor pressure module series) The XGZP165 pressure sensor is intended for using with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air is to be...
