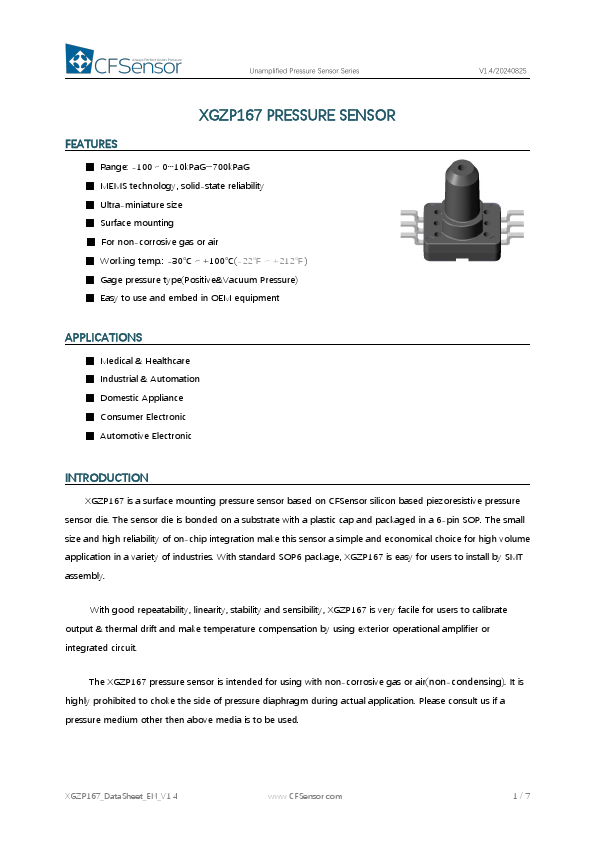

XGZP167
XGZP167 is Unamplified Pressure Sensor manufactured by CFSensor.
FEATURES
- Range: -100～0…10k Pa G…700k Pa G
- MEMS technology, solid-state reliability
- Ultra-miniature size
- Surface mounting
- For non-corrosive gas or air
- Working temp.: -30℃～+100℃(-22℉～+212℉)
- Gage pressure type(Positive&Vacuum Pressure)
- Easy to use and embed in OEM equipment
APPLICATIONS
- Medical & Healthcare
- Industrial & Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP167 is a surface mounting pressure sensor based on CFSensor silicon based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP6 package, XGZP167 is easy for users to install by SMT assembly.
With good repeatability, linearity, stability and sensibility, XGZP167 is very facile for users to calibrate output & thermal drift and make temperature pensation by using exterior operational amplifier or integrated circuit.
The XGZP167 pressure sensor is intended for using with non-corrosive gas or air(non-condensing). It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then above media is to be used.
XGZP167_Data Sheet_EN_V1.4
.CFSensor.
1/7
Unamplified Pressure Sensor Series
V1.4/20240825

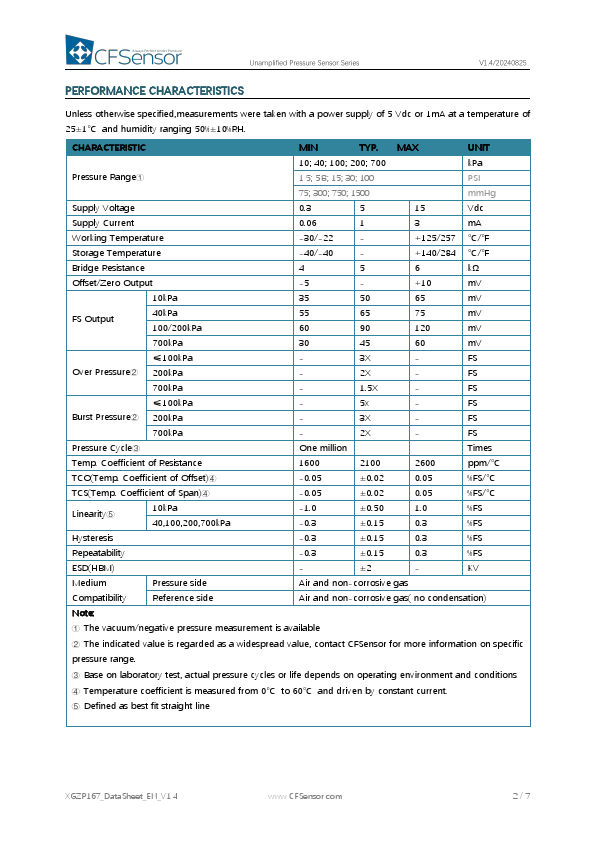

PERFORMANCE CHARACTERISTICS
Unless otherwise specified,measurements were taken with a power supply of 5 Vdc or 1m A at a temperature of 25±1℃ and humidity ranging 50%±10%RH.
CHARACTERISTIC
TYP. MAX
UNIT
10; 40; 100; 200; 700 k Pa
Pressure Range①
1.5; 5.8; 15; 30; 100
75; 300; 750; 1500... mm Hg
Supply...
