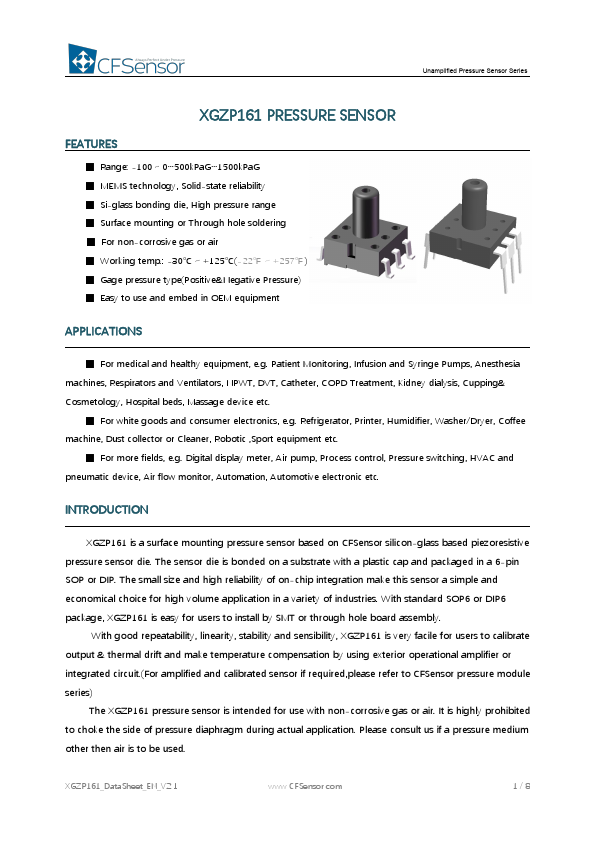

XGZP161 Datasheet | CFSensor

FEATURES - Range: -100～0…500k Pa G…1500k Pa G - MEMS technology, Solid-state reliability - Si-glass bonding die, High pressure range - Surface mounting or Through hole soldering - For non-corrosive gas or air - Working temp.: -30℃～+125℃(-22℉～+257℉) - Gage pressure type(Positive&Negative Pressure) - Easy to use and embed in OEM equipment APPLICATIONS - For medical and healthy equipment, e.g. Patient Monitoring, Infusion and Syringe Pumps, Anesthesia machines, Respirators and Ventilators, NPWT, DVT, Catheter, COPD Treatment, Kidney dialysis, Cupping& Cosmetology, Hospital beds, Massage device etc. - For white goods and consumer electronics, e.g. Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee machine, Dust collector or Cleaner, Robotic ,Sport equipment etc. - For more fields, e.g. Digital display meter, Air pump, Process control, Pressure switching, HVAC and pneumatic device, Air flow monitor, Automation, Automotive electronic etc. INTRODUCTION XGZP161 is a surface mounting pressure sensor based on CFSensor silicon-glass based piezoresistive pressure sensor die. The sensor die is bonded on a substrate with a plastic cap and packaged in a 6-pin SOP or DIP. The small size and high reliability of on-chip integration make this sensor a simple and economical choice for high volume application in a variety of industries. With standard SOP6 or DIP6 package, XGZP161 is easy for users to install by SMT or through hole board assembly. With good repeatability, linearity, stability and sensibility, XGZP161 is very facile for users to calibrate output & thermal drift and make temperature pensation by using exterior operational amplifier or integrated circuit.(For amplified and calibrated sensor if required,please refer to CFSensor pressure module series) The XGZP161 pressure sensor is intended for use with non-corrosive gas or air. It is highly prohibited to choke the side of pressure diaphragm during actual application. Please consult us if a pressure medium other then air...
