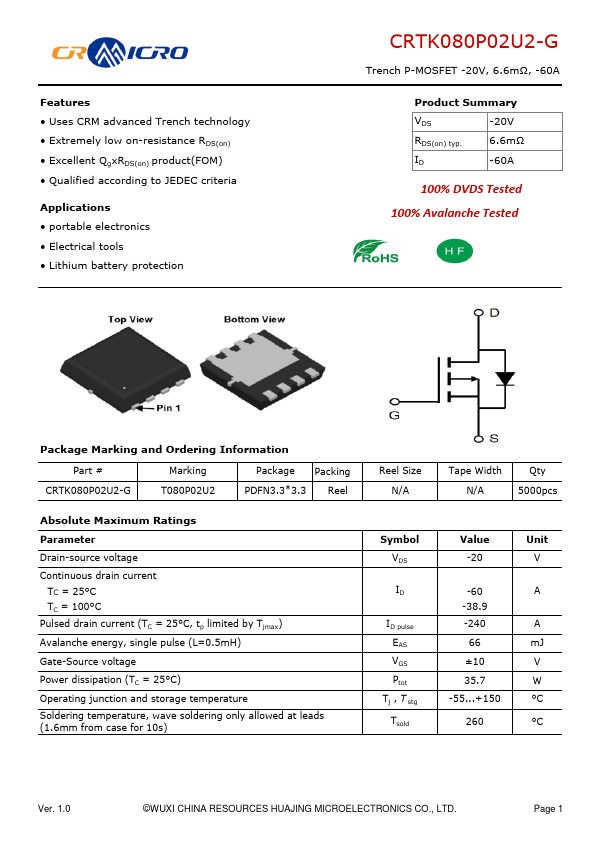

CRTK080P02U2-G
CRTK080P02U2-G is Trench P-MOSFET manufactured by CR Micro.
Features
- Uses CRM advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- portable electronics
- Electrical tools
- Lithium battery protection
Trench P-MOSFET -20V, 6.6mΩ, -60A
Product Summary
-20V
RDS(on) typ. ID
6.6mΩ -60A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTK080P02U2-G
Marking T080P02U2
Package Packing PDFN3.3- 3.3...
