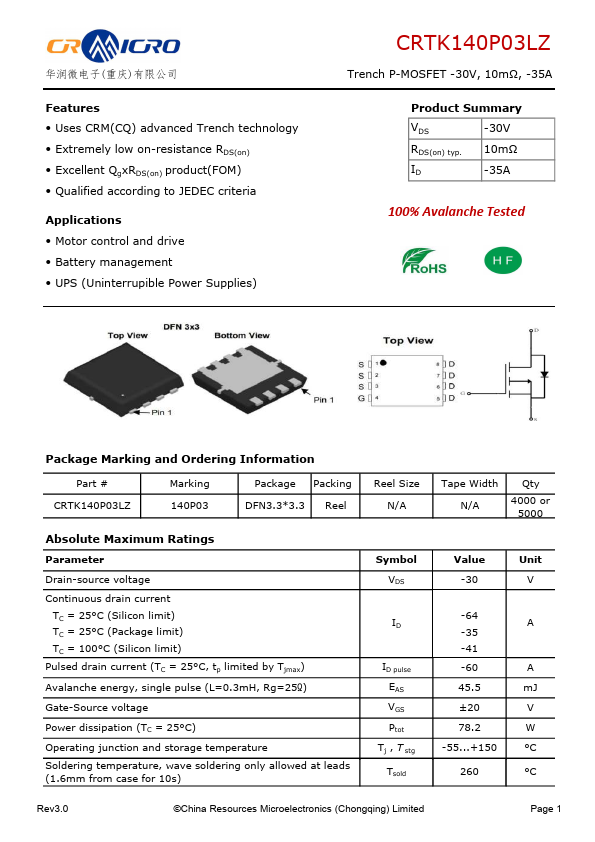

CRTK140P03LZ
CRTK140P03LZ is Trench P-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
Features
- Uses CRM(CQ) advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Motor control and drive
- Battery management
- UPS (Uninterrupible Power Supplies)
Trench P-MOSFET -30V, 10mΩ, -35A
Product Summary
-30V
RDS(on) typ. ID
10mΩ -35A
100% Avalanche Tested
Package Marking and Ordering Information
Part #
Marking
Package Packing
140P03
DFN3.3- 3.3...
