This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BCX56 |
|---|---|
| Datasheet | BCX56 BCX54 Datasheet (PDF) |
| File Size | 636.25 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT NPN SILICON TRANSISTOR |
|
|

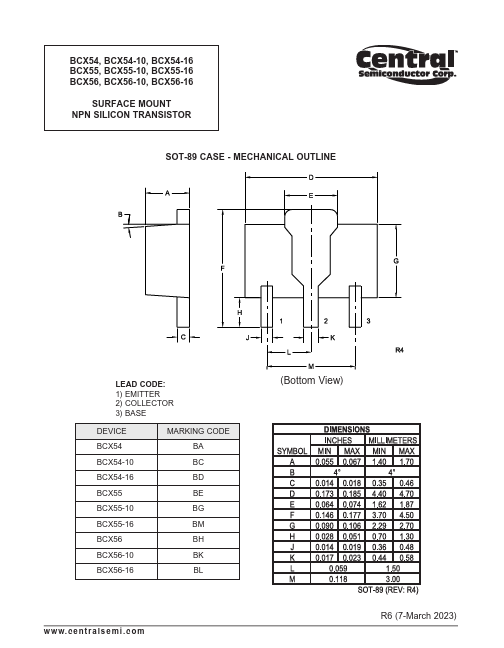

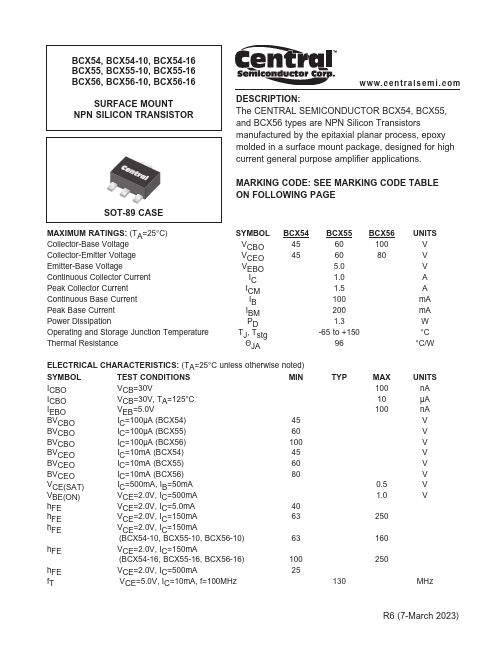

The CENTRAL SEMICONDUCTOR BCX54, BCX55, and BCX56 types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications. SOT-89 CASE MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE MAXIMUM RATINGS:.
