ZXTP2014Z - 140V PNP HIGH-VOLTAGE TRANSISTOR

Key Features

  • BVCEO > -140V.
  • IC = -3A High Continuous Current.
  • Low Saturation Voltage VCE(sat) < -75mV @ -0.5A.
  • Rsat = 85mΩ for a Low Equivalent On-Resistance.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • An automotive-compliant part is available under separate datasheet (ZXTP2014ZQ).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZXTP2014Z PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2014Z PNP Transistor Kexin
ZXTP2014G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors
ZXTP2012A PNP LOW SATURATION MEDIUM POWER TRANSISTOR Zetex Semiconductors
ZXTP2012G PNP MEDIUM POWER LOW SATURATION TRANSISTOR Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
ZXTP2014G 140V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2012G 60V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2012Z 60V PNP LOW SATURATION MEDIUM POWER TRANSISTOR
ZXTP2013G 100V PNP MEDIUM POWER LOW SATURATION TRANSISTOR
ZXTP2013Z 100V PNP LOW SATURATION MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

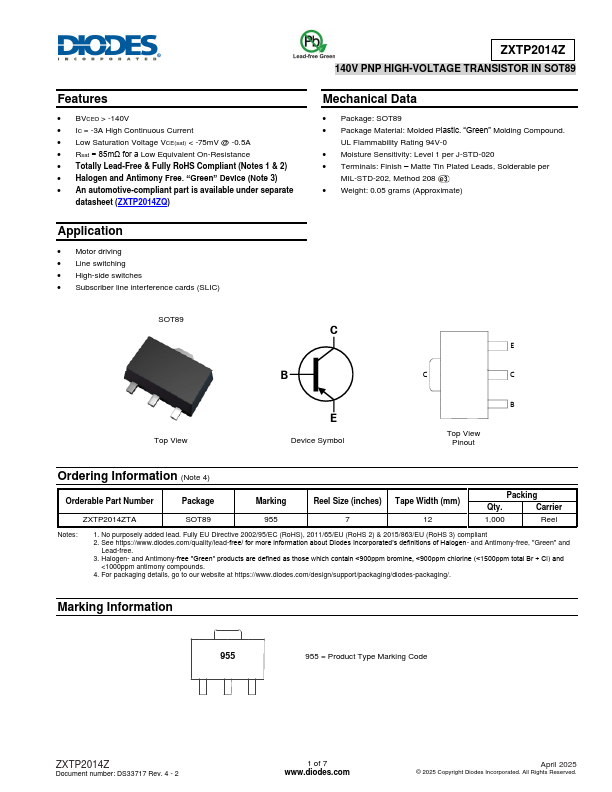

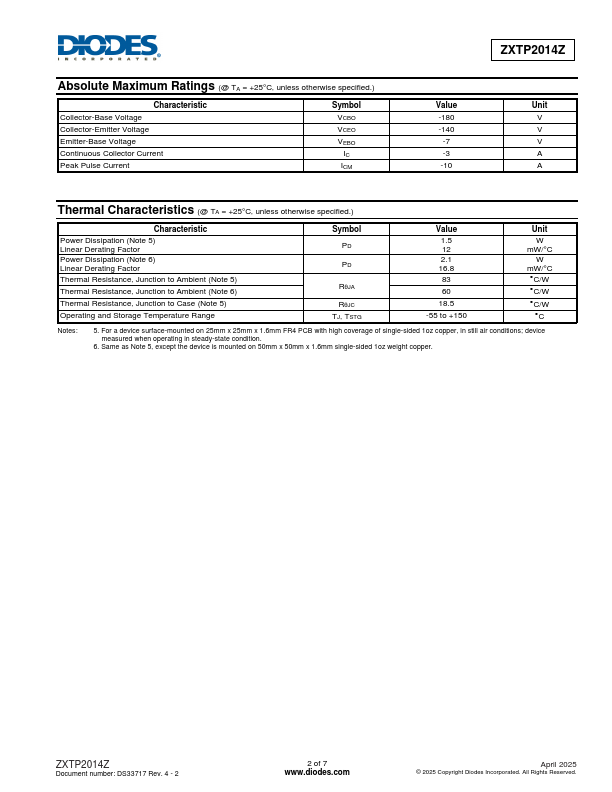

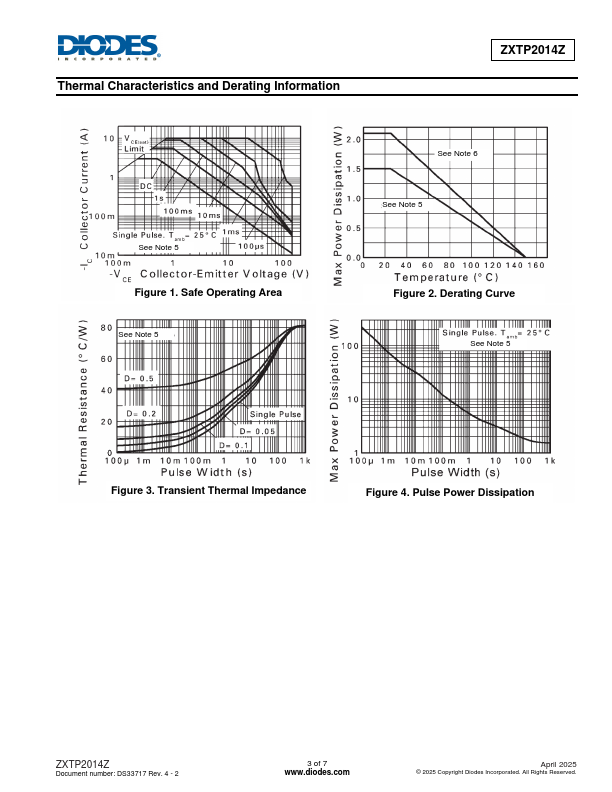

Features • BVCEO > -140V • IC = -3A High Continuous Current • Low Saturation Voltage VCE(sat) < -75mV @ -0.5A • Rsat = 85mΩ for a Low Equivalent On-Resistance • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • An automotive-compliant part is available under separate datasheet (ZXTP2014ZQ) Application • Motor driving • Line switching • High-side switches • Subscriber line interference cards (SLIC) ZXTP2014Z 140V PNP HIGH-VOLTAGE TRANSISTOR IN SOT89 Mechanical Data • Package: SOT89 • Package Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight: 0.
