DTQ3308 Description

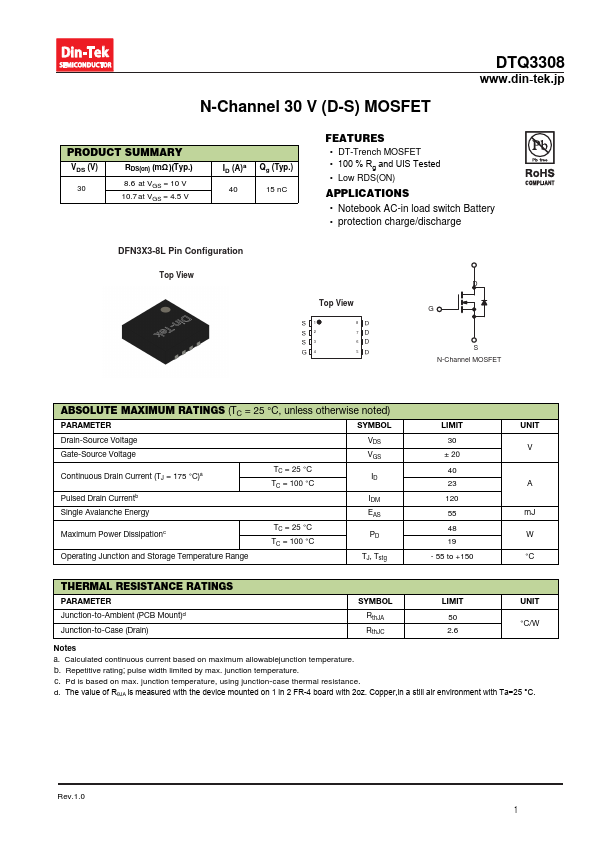

N-Channel 30 V (D-S) MOSFET DTQ3308 ZZZGLQWHNMS PRODUCT SUMMARY VDS (V) RDS(on) (mΩ )(Typ.) 30 8.6 at VGS = 10 V 10.7 at VGS = 4.5 V ID (A)a Qg (Typ.) 40 15.
DTQ3308 Key Features
- DT-Trench MOSFET
- 15J DQG8,67HVWHG
- Low RDS(ON)
- Part: DTQ3308
- Manufacturer: Din-Tek Semiconductor
- Size: 3.45 MB
