DTQ3302 Datasheet | Din-Tek Semiconductor

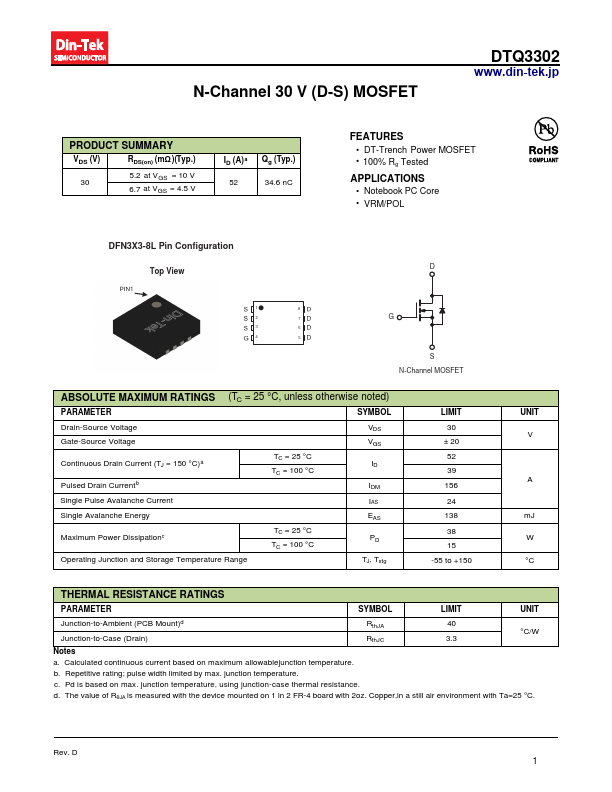

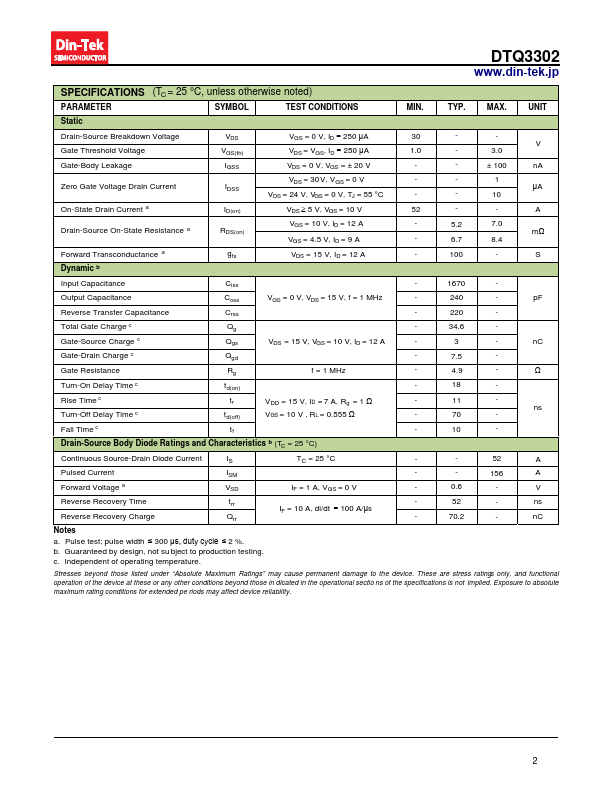

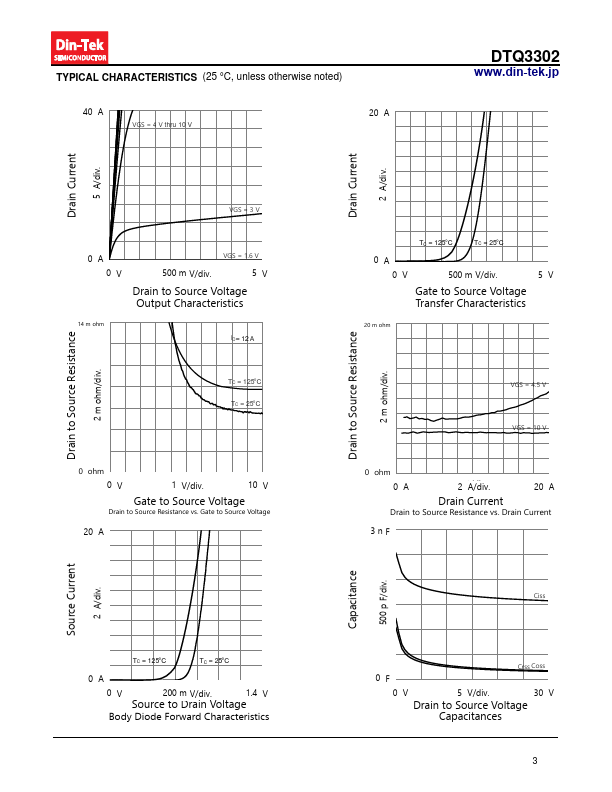

FEATURES - DT-Trench Power MOSFET - 100% Rg Tested APPLICATIONS ‡ Notebook PC Core ‡ VRM/POL DFN3X3-8L Pin Configuration Top View PIN1 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C)a Pulsed Drain Currentb TC = 25 °C ID TC = 100 °C IDM Single Pulse Avalanche Current Single Avalanche Energy Maximum Power Dissipationc TC = 25 °C PD TC = 100 °C Operating Junction and Storage Temperature Range TJ, Tstg LIMIT 30 ± 20 52 39 156 24 138 38 15 -55 to +150 UNIT V A m J W °C THERMAL RESISTANCE RATINGS PARAMETER SYMBOL LIMIT UNIT Junction-to-Ambient (PCB Mount)d Junction-to-Case (Drain) Rth...
