DTQ3309 - P-Channel MOSFET

Datasheet Summary

Features

TrenchFET® Power MOSFET.
Low On-Resistance for Low Voltage Drop.
100 % Rg and UIS Tested.

Din-Tek

📥 Download Datasheet

Datasheet Details

Part number	DTQ3309
Manufacturer	Din-Tek
File Size	363.84 KB
Description	P-Channel MOSFET
Datasheet	DTQ3309 Datasheet

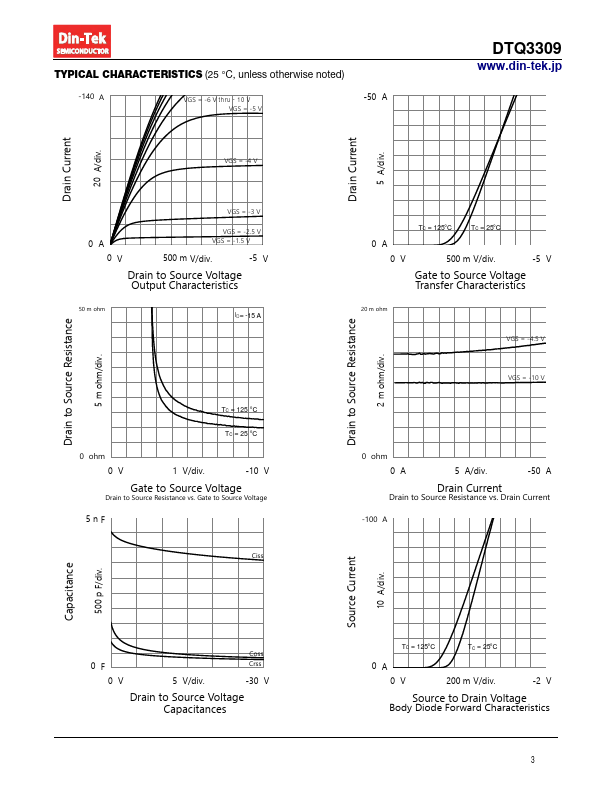

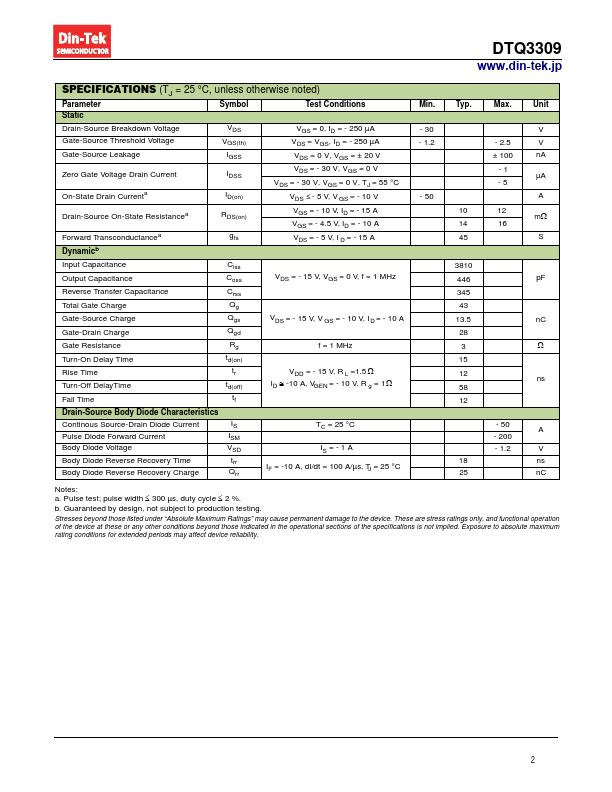

Additional preview pages of the DTQ3309 datasheet.

📁 Similar Datasheet

DTQ-13V6FCB - Color TV (Daewoo)
DTQ-13V6FCP - Color TV (Daewoo)
DTQ-14D7SS - Service Manual (DAEWOO)
DTQ-14D7SSP - Service Manual (DAEWOO)
DTQ-14J - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14P2 - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14U - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14U1FS - Service Manual (Daewoo)
DTQ-14U1FSN - Color Television Service Manual (DAEWOO ELECTRONICS)
DTQ-14U1FSP - Service Manual (Daewoo)

Other Datasheets by Din-Tek

DTQ3302 - N-Channel MOSFET
DTQ3306 - N-Channel MOSFET
DTQ3307 - P-Channel MOSFET
DTQ3308 - N-Channel MOSFET
DTQ3318 - N-Channel MOSFET
DTQ3321 - 30V P-Channel MOSFET
DTQ33304 - N-Channel MOSFET
DTQ3115 - P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

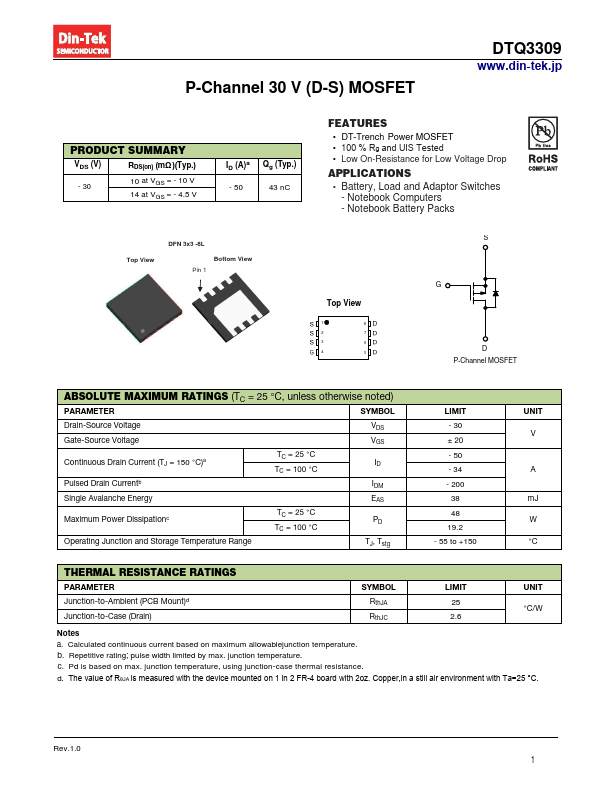

P-Channel 30 V (D-S) MOSFET DTQ3309 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) () Max. 0.010 at VGS = - 10 V - 30 0.014 at VGS = - 4.5 V ID (A) - 50d - 40d DFN 3x3 EP Top View Bottom View Qg (Typ.) 43.
