DTQ3306 datasheet by Din-Tek Semiconductor.
| Part number | DTQ3306 |
|---|---|
| Datasheet | DTQ3306-DinTek.pdf |
| File Size | 4.77 MB |
| Manufacturer | Din-Tek Semiconductor |
| Description | 30V N-Channel MOSFET |
|
|

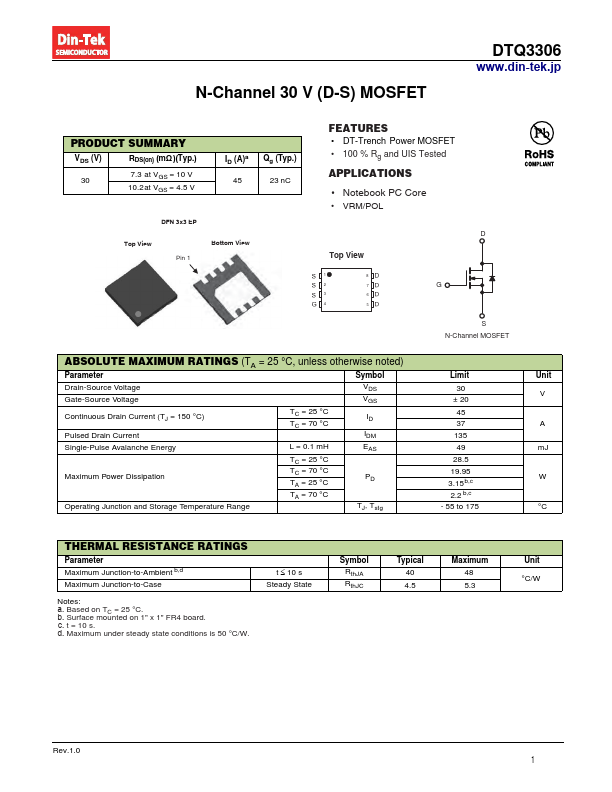

N-Channel 30 V (D-S) MOSFET DTQ3306 .din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (mΩ )(Typ.) 30 7.3 at VGS = 10 V 10.2at VGS = 4.5 V ID (A)a Qg (Typ.) 45 23 nC DFN 3x3 EP Top View Pin 1 Bottom.
