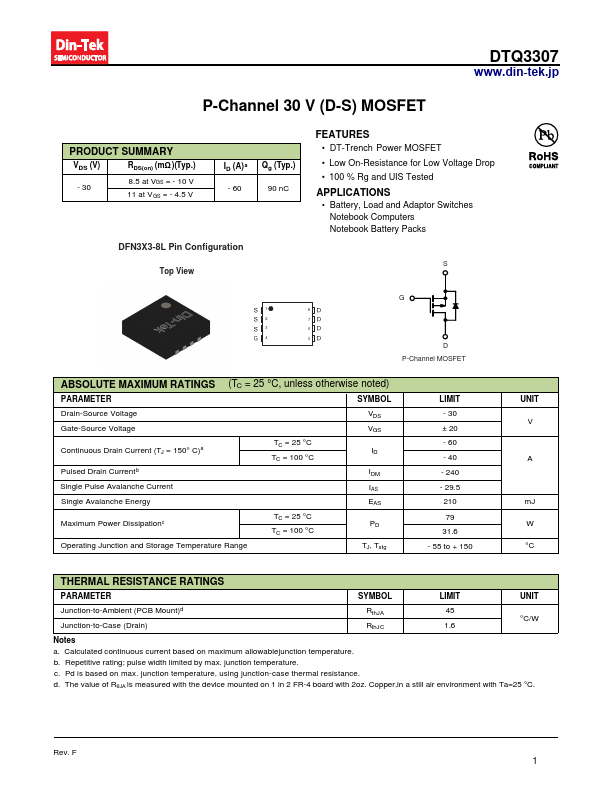

DTQ3307 Datasheet | Din-Tek Semiconductor

FEATURES - DT-Trench Power MOSFET - Low On-Resistance for Low Voltage Drop - 100 % Rg and UIS Tested APPLICATIONS ‡ Battery, Load and Adaptor Switches Notebook puters Notebook Battery Packs PIN1 D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150° C)a Pulsed Drain Currentb VDS VGS TC = 25 °C ID TC = 100 °C IDM Single Pulse Avalanche Current Single Avalanche Energy Maximum Power Dissipationc Operating Junction and Storage Temperature Range TC = 25 °C TC = 100 °C PD TJ, Tstg LIMIT - 30 ± 20 - 60 - 40 - 240 - 29.5 210 79 31.6 - 55 to + 150 UNIT V A m J W °C THERMAL RESISTANCE RATINGS PARAMETER SYMBOL LIMIT UNIT Junction-to-Ambient (PCB Mount)d Junction-to-Case (Drain) Rth JA Rth...
